4. Using Technology in a Safe Way

In Android, there are many specific security related issues that pertain only to certain technologies such as Activities or SQLite. If a developer does not have enough knowledge about each of the different security issues regarding each technology when designing and coding, then unexpected vulnerabilities may arise. This chapter will explain about the different scenarios that developers will need to know when using their application components.

4.1. Creating/Using Activities

4.1.1. Sample Code

The risks and countermeasures of using Activities differ depending on how that Activity is being used. In this section, we have classified 4 types of Activities based on how the Activity is being used. You can find out which type of activity you are supposed to create through the following chart shown below. Since the secure coding best practice varies according to how the activity is used, we will also explain about the implementation of the Activity as well.

Table 4.1.1 Definition of Activity Types
Type Definition
Private Activity An activity that cannot be launched by another application, and therefore is the safest activity
Public Activity An activity that is supposed to be used by an unspecified large number of applications.
Partner Activity An activity that can only be used by specific applications made by a trusted partner company.
In-house Activity An activity that can only be used by other in-house applications.
_images/image34.png

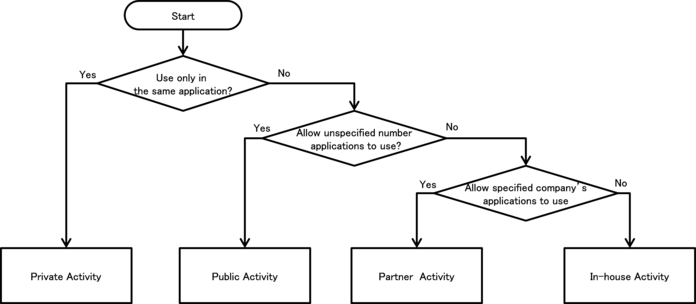

Fig. 4.1.1 Flow Figure to select Activity Type

4.1.1.1. Creating/Using Private Activities

Private Activities are Activities which cannot be launched by the other applications and therefore it is the safest Activity.

When using Activities that are only used within the application (Private Activity), as long as you use explicit Intents to the class then you do not have to worry about accidently sending it to any other application. However, there is a risk that a third party application can read an Intent that is used to start the Activity. Therefore it is necessary to make sure that if you are putting sensitive information inside an Intent used to start an Activity that you take countermeasures to make sure that it cannot be read by a malicious third party.

Sample code of how to create a Private Activity is shown below.

Points (Creating an Activity):

  1. Do not specify taskAffinity.
  2. Do not specify launchMode.
  3. Explicitly set the exported attribute to false.
  4. Handle the received intent carefully and securely, even though the intent was sent from the same application.
  5. Sensitive information can be sent since it is sending and receiving all within the same application.

To make the Activity private, set the “exported” attribute of the Activity element in the AndroidManifest.xml to false.

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.privateactivity" >

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- Private activity -->
    <!-- *** POINT 1 *** Do not specify taskAffinity -->
    <!-- *** POINT 2 *** Do not specify launchMode -->
    <!-- *** POINT 3 *** Explicitly set the exported attribute to false. -->
    <activity
        android:name=".PrivateActivity"
        android:label="@string/app_name"
        android:exported="false" />

    <!-- Public activity launched by launcher -->
    <activity
        android:name=".PrivateUserActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>
PrivateActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.privateactivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PrivateActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.private_activity);

        // *** POINT 4 *** Handle the received Intent carefully and securely,
        // even though the Intent was sent from the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = getIntent().getStringExtra("PARAM");
        Toast.makeText(this,
                       String.format("Received param: \"%s\"", param),
                       Toast.LENGTH_LONG).show();
    }

    public void onReturnResultClick(View view) {

        // *** POINT 5 *** Sensitive information can be sent since it is sending
        // and receiving all within the same application.
        Intent intent = new Intent();
        intent.putExtra("RESULT", "Sensitive Info");
        setResult(RESULT_OK, intent);
        finish();
    }
}

Next, we show the sample code for how to use the Private Activity.

Point (Using an Activity):

  1. Do not set the FLAG_ACTIVITY_NEW_TASK flag for intents to start an activity.
  2. Use the explicit Intents with the class specified to call an activity in the same application.
  3. Sensitive information can be sent only by putExtra() since the destination activity is in the same application [1].
  4. Handle the received result data carefully and securely, even though the data comes from an activity within the same application.
[1]Caution: Unless points 1, 2 and 6 are abided by, there is a risk that Intents may be read by a third party. Please refer to 4.1.2.2. and 4.1.2.3. for more details.
PrivateUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.privateactivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PrivateUserActivity extends Activity {

    private static final int REQUEST_CODE = 1;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.user_activity);
    }

    public void onUseActivityClick(View view) {

        // *** POINT 6 *** Do not set the FLAG_ACTIVITY_NEW_TASK flag
        // for intents to start an activity.
        // *** POINT 7 *** Use the explicit Intents with the class
        // specified to call an activity in the same application.
        Intent intent = new Intent(this, PrivateActivity.class);

        // *** POINT 8 *** Sensitive information can be sent only by putExtra()
        // since the destination activity is in the same application.
        intent.putExtra("PARAM", "Sensitive Info");

        startActivityForResult(intent, REQUEST_CODE);
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        if (resultCode != RESULT_OK) return;

        switch (requestCode) {
        case REQUEST_CODE:
            String result = data.getStringExtra("RESULT");

            // *** POINT 9 *** Handle the received data carefully and securely,
            // even though the data comes from an activity within the same
            // application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            Toast.makeText(this,
                           String.format("Received result: \"%s\"", result),
                           Toast.LENGTH_LONG).show();
            break;
        }
    }
}

4.1.1.2. Creating/Using Public Activities

Public Activities are Activities which are supposed to be used by an unspecified large number of applications. It is necessary to be aware that Public Activities may receive Intents sent from malware.

In addition, when using Public Activities, it is necessary to be aware of the fact that malware can also receive or read the Intents sent to them.

The sample code to create a Public Activity is shown below.

Points (Creating an Activity):

  1. Explicitly set the exported attribute to true.
  2. Handle the received intent carefully and securely.
  3. When returning a result, do not include sensitive information.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.publicactivity" >

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- Public Activity -->
    <!-- *** POINT 1 *** Explicitly set the exported attribute to true. -->
    <activity
        android:name=".PublicActivity"
        android:label="@string/app_name"
        android:exported="true">

      <!-- Define intent filter to receive an implicit intent for a specified action -->
      <intent-filter>
        <action android:name="org.jssec.android.activity.MY_ACTION" />
        <category android:name="android.intent.category.DEFAULT" />
      </intent-filter>
    </activity>
  </application>
</manifest>
PublicActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.publicactivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PublicActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // *** POINT 2 *** Handle the received intent carefully and securely.
        // Since this is a public activity, it is possible that the sending
        // application may be malware.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = getIntent().getStringExtra("PARAM");
        Toast.makeText(this,
                       String.format("Received param: \"%s\"", param),
                       Toast.LENGTH_LONG).show();
    }

    public void onReturnResultClick(View view) {

        // *** POINT 3 *** When returning a result, do not include sensitive
        // information.
        // Since this is a public activity, it is possible that the receiving
        // application may be malware.
        // If there is no problem if the data gets received by malware,
        // then it can be returned as a result.
        Intent intent = new Intent();
        intent.putExtra("RESULT", "Not Sensitive Info");
        setResult(RESULT_OK, intent);
        finish();
    }
}

Next, Herein after sample code of Public Activity user side.

Points (Using an Activity):

  1. Do not send sensitive information.
  2. When receiving a result, handle the data carefully and securely.
PublicUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.publicuser;

import android.app.Activity;
import android.content.ActivityNotFoundException;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PublicUserActivity extends Activity {

    private static final int REQUEST_CODE = 1;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }

    public void onUseActivityClick(View view) {

        try {
            // *** POINT 4 *** Do not send sensitive information.
            Intent intent = new Intent("org.jssec.android.activity.MY_ACTION");
            intent.putExtra("PARAM", "Not Sensitive Info");
            startActivityForResult(intent, REQUEST_CODE);
        } catch (ActivityNotFoundException e) {
            Toast.makeText(this,
                           "Target activity not found.", Toast.LENGTH_LONG).show();
        }
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        // *** POINT 5 *** When receiving a result, handle the data carefully and
        // securely.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        if (resultCode != RESULT_OK) return;
        switch (requestCode) {
        case REQUEST_CODE:
            String result = data.getStringExtra("RESULT");
            Toast.makeText(this,
                           String.format("Received result: \"%s\"", result),
                           Toast.LENGTH_LONG).show();
            break;
        }
    }
}

4.1.1.3. Creating/Using Partner Activities

Partner activities are Activities that can only be used by specific applications. They are used between cooperating partner companies that want to securely share information and functionality.

There is a risk that a third party application can read an Intent that is used to start the Activity. Therefore it is necessary to make sure that if you are putting sensitive information inside an Intent used to start an Activity that you take countermeasures to make sure that it cannot be read by a malicious third party

Sample code for creating a Partner Activity is shown below.

Points (Creating an Activity):

  1. Do not specify taskAffinity.
  2. Do not specify launchMode.
  3. Do not define the intent filter and explicitly set the exported attribute to true.
  4. Verify the requesting application’s certificate through a predefined whitelist.
  5. Handle the received intent carefully and securely, even though the intent was sent from a partner application.
  6. Only return Information that is granted to be disclosed to a partner application.

Please refer to “4.1.3.2. Validating the Requesting Application” for how to validate an application by a white list. Also, please refer to “5.2.1.3. How to Verify the Hash Value of an Application’s Certificate” for how to verify the certificate hash value of a destination application which is specified in the whitelist.

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.partneractivity" >

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- Partner activity -->
    <!-- *** POINT 1 *** Do not specify taskAffinity -->
    <!-- *** POINT 2 *** Do not specify launchMode -->
    <!-- *** POINT 3 *** Do not define the intent filter and explicitly set the exported attribute to true -->
    <activity
        android:name=".PartnerActivity"
        android:exported="true" />

  </application>
</manifest>
PartnerActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.partneractivity;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PartnerActivity extends Activity {

    // *** POINT 4 *** Verify the requesting application's certificate
    // through a predefined whitelist.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register certificate hash value of partner application
        // org.jssec.android.activity.partneruser.
        sWhitelists.add("org.jssec.android.activity.partneruser", isdebug ?
            // Certificate hash value of "androiddebugkey" in the debug.keystore.
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of "partner key" in the keystore.
            "1F039BB5 7861C27A 3916C778 8E78CE00 690B3974 3EB8259F E2627B8D 4C0EC35A");

        // Register the other partner applications in the same way.
    }
    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // *** POINT 4 *** Verify the requesting application's certificate
        // through a predefined whitelist.
        if (!checkPartner(this, getCallingActivity().getPackageName())) {
            Toast.makeText(this,
                           "Requesting application is not a partner application.",
                           Toast.LENGTH_LONG).show();
            finish();
            return;
        }

        // *** POINT 5 *** Handle the received intent carefully and securely,
        // even though the intent was sent from a partner application.
        // Omitted, since this is a sample. Refer to
        // "3.2 Handling Input Data Carefully and Securely."
        Toast.makeText(this, "Accessed by Partner App", Toast.LENGTH_LONG).show();
    }

    public void onReturnResultClick(View view) {

        // *** POINT 6 *** Only return Information that is granted to be disclosed
        // to a partner application.
        Intent intent = new Intent();
        intent.putExtra("RESULT", "Information for partner applications");
        setResult(RESULT_OK, intent);
        finish();
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

Sample code for using a Partner Activity is described below.

Points (Using an Activity):

  1. Verify if the certificate of the target application has been registered in a whitelist.
  2. Do not set the FLAG_ACTIVITY_NEW_TASK flag for the intent that start an activity.
  3. Only send information that is granted to be disclosed to a Partner Activity only by putExtra().
  4. Use explicit intent to call a Partner Activity.
  5. Use startActivityForResult() to call a Partner Activity.
  6. Handle the received result data carefully and securely, even though the data comes from a partner application.

Refer to “4.1.3.2. Validating the Requesting Application” for how to validate applications by white list. Also please refer to “5.2.1.3. How to Verify the Hash Value of an Application’s Certificate” for how to verify the certificate hash value of a destination application which is to be specified in a white list.

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.partneruser" >

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <activity
        android:name="org.jssec.android.activity.partneruser.PartnerUserActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>
PartnerUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.partneruser;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.ActivityNotFoundException;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PartnerUserActivity extends Activity {

    // *** POINT 7 *** Verify if the certificate of a target application
    // has been registered in a white list.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register the certificate hash value of partner application
        // org.jssec.android.activity.partneractivity.
        sWhitelists.add("org.jssec.android.activity.partneractivity", isdebug ?
            // Certificate hash value of "androiddebugkey" is in debug.keystore.
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of "my company key" is in the keystore.
            "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA");

        // Register the other partner applications in the same way.
    }
    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    private static final int REQUEST_CODE = 1;

    // Information related the target partner activity
    private static final String TARGET_PACKAGE =
            "org.jssec.android.activity.partneractivity";
    private static final String TARGET_ACTIVITY =
            "org.jssec.android.activity.partneractivity.PartnerActivity";

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }

    public void onUseActivityClick(View view) {

        // *** POINT 7 *** Verify if the certificate of the target application
        // has been registered in the own white list.
        if (!checkPartner(this, TARGET_PACKAGE)) {
            Toast.makeText(this,
                           "Target application is not a partner application.",
                           Toast.LENGTH_LONG).show();
            return;
        }

        try {
            // *** POINT 8 *** Do not set the FLAG_ACTIVITY_NEW_TASK flag for
            // the intent that start an activity.
            Intent intent = new Intent();

            // *** POINT 9 *** Only send information that is granted to be
            // disclosed to a Partner Activity only by putExtra().
            intent.putExtra("PARAM", "Info for Partner Apps");

            // *** POINT 10 *** Use explicit intent to call a Partner Activity.
            intent.setClassName(TARGET_PACKAGE, TARGET_ACTIVITY);

            // *** POINT 11 *** Use startActivityForResult() to call a Partner
            // Activity.
            startActivityForResult(intent, REQUEST_CODE);
        }
        catch (ActivityNotFoundException e) {
            Toast.makeText(this,
                           "Target activity not found.",
                           Toast.LENGTH_LONG).show();
        }
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        if (resultCode != RESULT_OK) return;

        switch (requestCode) {
        case REQUEST_CODE:
            String result = data.getStringExtra("RESULT");

            // *** POINT 12 *** Handle the received data carefully and securely,
            // even though the data comes from a partner application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            Toast.makeText(this,
                           String.format("Received result: \"%s\"", result),
                           Toast.LENGTH_LONG).show();
            break;
        }
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

4.1.1.4. Creating/Using In-house Activities

In-house activities are the Activities which are prohibited to be used by applications other than other in-house applications. They are used in applications developed internally that want to securely share information and functionality.

There is a risk that a third party application can read an Intent that is used to start the Activity. Therefore it is necessary to make sure that if you are putting sensitive information inside an Intent used to start an Activity that you take countermeasures to make sure that it cannot be read by a malicious third party.

Sample code for creating an In-house Activity is shown below.

Points (Creating an Activity):

  1. Define an in-house signature permission.
  2. Do not specify taskAffinity.
  3. Do not specify launchMode.
  4. Require the in-house signature permission.
  5. Do not define an intent filter and explicitly set the exported attribute to true.
  6. Verify that the in-house signature permission is defined by an in-house application.
  7. Handle the received intent carefully and securely, even though the intent was sent from an in-house application.
  8. Sensitive information can be returned since the requesting application is in-house.
  9. When exporting an APK, sign the APK with the same developer key as the requesting application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.inhouseactivity" >

  <!-- *** POINT 1 *** Define an in-house signature permission -->
  <permission
      android:name="org.jssec.android.activity.inhouseactivity.MY_PERMISSION"
      android:protectionLevel="signature" />

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- In-house Activity -->
    <!-- *** POINT 2 *** Do not specify taskAffinity -->
    <!-- *** POINT 3 *** Do not specify launchMode -->
    <!-- *** POINT 4 *** Require the in-house signature permission  -->
    <!-- *** POINT 5 *** Do not define the intent filter and explicitly set the exported attribute to true -->
    <activity
        android:name="org.jssec.android.activity.inhouseactivity.InhouseActivity"
        android:exported="true"
        android:permission="org.jssec.android.activity.inhouseactivity.MY_PERMISSION" />
  </application>
</manifest>
InhouseActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.inhouseactivity;

import org.jssec.android.shared.SigPerm;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class InhouseActivity extends Activity {

    // In-house Signature Permission
    private static final String MY_PERMISSION =
            "org.jssec.android.activity.inhouseactivity.MY_PERMISSION";

    // In-house certificate hash value
    private static String sMyCertHash = null;
    private static String myCertHash(Context context) {
        if (sMyCertHash == null) {
            if (Utils.isDebuggable(context)) {
                // Certificate hash value of "androiddebugkey" in the
                // debug.keystore.
                sMyCertHash = "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255";
            } else {
                // Certificate hash value of "my company key" in the keystore.
                sMyCertHash = "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA";
            }
        }
        return sMyCertHash;
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // *** POINT 6 *** Verify that the in-house signature permission is
        // defined by an in-house application.
        if (!SigPerm.test(this, MY_PERMISSION, myCertHash(this))) {
            Toast.makeText(this,
                           "The in-house signature permission is not declared by in-house application.",
                           Toast.LENGTH_LONG).show();
            finish();
            return;
        }

        // *** POINT 7 *** Handle the received intent carefully and securely,
        // even though the intent was sent from an in-house application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = getIntent().getStringExtra("PARAM");
        Toast.makeText(this,
                       String.format("Received param: \"%s\"", param),
                       Toast.LENGTH_LONG).show();
    }

    public void onReturnResultClick(View view) {

        // *** POINT 8 *** Sensitive information can be returned since
        // the requesting application is in-house.
        Intent intent = new Intent();
        intent.putExtra("RESULT", "Sensitive Info");
        setResult(RESULT_OK, intent);
        finish();
    }
}
SigPerm.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.PermissionInfo;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class SigPerm {

    public static boolean test(Context ctx, String sigPermName,
                               String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        try {
            // Get the package name of the application which declares a permission
            // named sigPermName.
            PackageManager pm = ctx.getPackageManager();
            PermissionInfo pi =
                pm.getPermissionInfo(sigPermName, PackageManager.GET_META_DATA);
            String pkgname = pi.packageName;
            // Fail if the permission named sigPermName is not a Signature
            // Permission
            if (pi.protectionLevel != PermissionInfo.PROTECTION_SIGNATURE)
                return false;

            // Compare the actual hash value of pkgname with the correct hash
            // value.
            if (Build.VERSION.SDK_INT >= 28) {
                // ** if API Level >= 28, direct check is possible
                return pm.hasSigningCertificate(pkgname,
                                                Utils.hex2Bytes(correctHash),
                                                CERT_INPUT_SHA256);
            } else {
                // else(API Level < 28) use the facility of PkgCert
                return correctHash.equals(PkgCert.hash(ctx, pkgname));
            }

        } catch (NameNotFoundException e) {
            return false;
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

*** Point9 *** When exporting an APK, sign the APK with the same developer key as the requesting application.

_images/image35.png

Fig. 4.1.2 Sign the APK with the same developer key as the requesting application

Sample code for using an In-house Activity is described below.

Points (Using an activity):

  1. Declare that you want to use the in-house signature permission.
  2. Verify that the in-house signature permission is defined by an in-house application.
  3. Verify that the destination application is signed with the in-house certificate.
  4. Sensitive information can be sent only by putExtra() since the destination application is in-house.
  5. Use explicit intents to call an In-house Activity.
  6. Handle the received data carefully and securely, even though the data came from an in-house application.
  7. When exporting an APK, sign the APK with the same developer key as the destination application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.inhouseuser" >

  <!-- *** POINT 10 *** Declare to use the in-house signature permission -->
  <uses-permission
      android:name="org.jssec.android.activity.inhouseactivity.MY_PERMISSION" />

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <activity
        android:name="org.jssec.android.activity.inhouseuser.InhouseUserActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>
InhouseUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.inhouseuser;

import org.jssec.android.shared.PkgCert;
import org.jssec.android.shared.SigPerm;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.ActivityNotFoundException;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class InhouseUserActivity extends Activity {

    // Target Activity information
    private static final String TARGET_PACKAGE =
            "org.jssec.android.activity.inhouseactivity";
    private static final String TARGET_ACTIVITY =
            "org.jssec.android.activity.inhouseactivity.InhouseActivity";

    // In-house Signature Permission
    private static final String MY_PERMISSION =
            "org.jssec.android.activity.inhouseactivity.MY_PERMISSION";

    // In-house certificate hash value
    private static String sMyCertHash = null;
    private static String myCertHash(Context context) {
        if (sMyCertHash == null) {
            if (Utils.isDebuggable(context)) {
                // Certificate hash value of "androiddebugkey" in the
                // debug.keystore.
                sMyCertHash = "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255";
            } else {
                // Certificate hash value of "my company key" in the keystore.
                sMyCertHash = "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA";
            }
        }
        return sMyCertHash;
    }

    private static final int REQUEST_CODE = 1;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }

    public void onUseActivityClick(View view) {

        // *** POINT 11 *** Verify that the in-house signature permission is
        // defined by an in-house application.
        if (!SigPerm.test(this, MY_PERMISSION, myCertHash(this))) {
            Toast.makeText(this,
                           "The in-house signature permission is not declared by in-house application.",
                           Toast.LENGTH_LONG).show();
            return;
        }

        // ** POINT 12 *** Verify that the destination application is signed
        // with the in-house certificate.
        if (!PkgCert.test(this, TARGET_PACKAGE, myCertHash(this))) {
            Toast.makeText(this,
                           "Target application is not an in-house application.",
                           Toast.LENGTH_LONG).show();
            return;
        }

        try {
            Intent intent = new Intent();

            // *** POINT 13 *** Sensitive information can be sent only by
            // putExtra() since the destination application is in-house.
            intent.putExtra("PARAM", "Sensitive Info");

            // *** POINT 14 *** Use explicit intents to call an In-house Activity.
            intent.setClassName(TARGET_PACKAGE, TARGET_ACTIVITY);
            startActivityForResult(intent, REQUEST_CODE);
        }
        catch (ActivityNotFoundException e) {
            Toast.makeText(this,
                           "Target activity not found.",
                           Toast.LENGTH_LONG).show();
        }
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        if (resultCode != RESULT_OK) return;

        switch (requestCode) {
        case REQUEST_CODE:
            String result = data.getStringExtra("RESULT");

            // *** POINT 15 *** Handle the received data carefully and securely,
            // even though the data came from an in-house application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            Toast.makeText(this,
                           String.format("Received result: \"%s\"", result),
                           Toast.LENGTH_LONG).show();
            break;
        }
    }
}
SigPerm.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.PermissionInfo;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class SigPerm {

    public static boolean test(Context ctx, String sigPermName,
                               String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        try {
            // Get the package name of the application which declares a permission
            // named sigPermName.
            PackageManager pm = ctx.getPackageManager();
            PermissionInfo pi =
                pm.getPermissionInfo(sigPermName, PackageManager.GET_META_DATA);
            String pkgname = pi.packageName;
            // Fail if the permission named sigPermName is not a Signature
            // Permission
            if (pi.protectionLevel != PermissionInfo.PROTECTION_SIGNATURE)
                return false;

            // Compare the actual hash value of pkgname with the correct hash
            // value.
            if (Build.VERSION.SDK_INT >= 28) {
                // ** if API Level >= 28, direct check is possible
                return pm.hasSigningCertificate(pkgname,
                                                Utils.hex2Bytes(correctHash),
                                                CERT_INPUT_SHA256);
            } else {
                // else(API Level < 28) use the facility of PkgCert
                return correctHash.equals(PkgCert.hash(ctx, pkgname));
            }

        } catch (NameNotFoundException e) {
            return false;
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

*** Point 16 *** When exporting an APK, sign the APK with the same developer key as the destination application.

_images/image35.png

Fig. 4.1.3 Sign the APK with the same developer key as the destination application

4.1.2. Rule Book

Be sure to follow the rules below when creating or sending an Intent to an activity.

  1. Activities that are Used Only Internally to the Application Must be Set Private (Required)
  2. Do Not Specify taskAffinity (Required)
  3. Do Not Specify launchMode (Required)
  4. Do Not Set the FLAG_ACTIVITY_NEW_TASK Flag for Intents that Start an Activity (Required)
  5. Handling the Received Intent Carefully and Securely (Required)
  6. Use an In-house Defined Signature Permission after Verifying that it is Defined by an In-House Application (Required)
  7. When Returning a Result, Pay Attention to the Possibility of Information Leakage of that Result from the Destination Application (Required)
  8. Use the explicit Intents if the destination Activity is predetermined. (Required)
  9. Handle the Returned Data from a Requested Activity Carefully and Securely (Required)
  10. Verify the Destination Activity if Linking with Another Company’s Application (Required)
  11. When Providing an Asset Secondhand, the Asset should be Protected with the Same Level of Protection (Required)
  12. Sending Sensitive Information Should Be Limited as much as possible (Recommended)

4.1.2.1. Activities that are Used Only Internally to the Application Must be Set Private (Required)

Activities which are only used in a single application are not required to be able to receive any Intents from other applications. Developers often assume that Activities intended to be private will not be attacked but it is necessary to explicitly make these Activities private in order to stop malicious Intents from being received.

AndroidManifest.xml
        <!-- Private activity -->
        <!-- *** 4.1.1.1 - POINT 3 *** Explicitly set the exported attribute to false. -->
        <activity
            android:name=".PrivateActivity"
            android:label="@string/app_name"
            android:exported="false" />

Intent filters should not be set on activities that are only used in a single application. Due to the characteristics of Intent filters, Due to the characteristics of how Intent filters work, even if you intend to send an Intent to a Private Activity internally, if you send the Intent through an Intent filter than you may unintentionally start another Activity. Please see Advanced Topics “4.1.3.1. Combining Exported Attributes and Intent Filter Settings (For Activities)” for more details.

AndroidManifest.xml(Not recommended)
       <!-- Private activity -->
       <!-- *** 4.1.1.1 - POINT 3 *** Explicitly set the exported attribute to false. -->
       <activity
           android:name=".PictureActivity"
           android:label="@string/picture_name"
           android:exported="false" >
           <intent-filter>
               <action android:name=”org.jssec.android.activity.OPEN />
           </intent-filter>
       </activity>

4.1.2.2. Do Not Specify taskAffinity (Required)

In Android OS, Activities are managed by tasks. Task names are determined by the affinity that the root Activity has. On the other hand, for Activities other than root Activities, the task to which the Activity belongs is not determined by the Affinity only, but also depends on the Activity’s launch mode. Please refer to “4.1.3.4. Root Activity” for more details.

In the default setting, each Activity uses its package name as its affinity. As a result, tasks are allocated according to application, so all Activities in a single application will belong to the same task. To change the task allocation, you can make an explicit declaration for the affinity in the AndroidManifest.xml file or you can set a flag in an Intent sent to an Activity. However, if you change task allocations, there is a risk that another application could read the Intents sent to Activities belonging to another task.

Be sure not to specify android:taskAffinity in the AndroidManifest.xml file and use the default setting keeping the affinity as the package name in order to prevent sensitive information inside sent or received Intents from being read by another application.

Below is an example AndroidManifest.xml file for creating and using Private Activities.

AndroidManifest.xml
    <!-- *** 4.1.1.1 - POINT 1 *** Do not specify taskAffinity -->
    <application
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name" >

        <!-- *** 4.1.1.1 - POINT 1 *** Do not specify taskAffinity -->
        <activity
            android:name=".PrivateUserActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <!-- Private activity -->
        <!-- *** 4.1.1.1 - POINT 1 *** Do not specify taskAffinity -->
        <activity
            android:name=".PrivateActivity"
            android:label="@string/app_name"
            android:exported="false" />
     </application>

Please refer to the “Google Android Programming guide”[2], the Google Developer’s API Guide “Tasks and Back Stack”[3], “4.1.3.3. Reading Intents Sent to an Activity” and “4.1.3.4. Root Activity” for more details about tasks and affinities.

[2]Author Egawa, Fujii, Asano, Fujita, Yamada, Yamaoka, Sano, Takebata, “Google Android Programming Guide”, ASCII Media Works, July 2009
[3]https://developer.android.com/guide/components/tasks-and-back-stack.html

4.1.2.3. Do Not Specify launchMode (Required)

The Activity launch mode is used to control the settings for creating new tasks and Activity instances when starting an Activity. By default it is set to “standard”. In the “standard” setting, new instances are always created when starting an Activity, tasks follow the tasks belonging to the calling Activity, and it is not possible to create a new task. When a new task is created, it is possible for other applications to read the contents of the calling Intent so it is required to use the “standard” Activity launch mode setting when sensitive information is included in an Intent.

The Activity launch mode can be explicitly set in the android:launchMode attribute in the AndroidManifest.xml file, but because of the reason explained above, this should not be set in the Activity declaration and the value should be kept as the default “standard”.

AndroidManifest.xml
        <!-- *** 4.1.1.1 - POINT 2 *** Do not specify launchMode -->
        <activity
            android:name=".PrivateUserActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <!-- Private activity -->
        <!-- *** 4.1.1.1 - POINT 2 *** Do not specify launchMode -->
        <activity
            android:name=".PrivateActivity"
            android:label="@string/app_name"
            android:exported="false" />
    </application>

Please refer to “4.1.3.3. Reading Intents Sent to an Activity” and “4.1.3.4. Root Activity.”

4.1.2.4. Do Not Set the FLAG_ACTIVITY_NEW_TASK Flag for Intents that Start an Activity (Required)

The launch mode of an Activity can be changed when executing startActivity() or startActivityForResult() and in some cases a new task may be generated. Therefore it is necessary to not change the launch mode of Activity during execution.

To change the Activity launch mode, set the Intent flags by using setFlags() or addFlags() and use that Intent as an argument to startActivity() or startActivityForResult(). FLAG_ACTIVITY_NEW_TASK is the flag used to create a new task. When the FLAG_ACTIVITY_NEW_TASK is set, a new task will be created if the called Activity does not exist in the background or foreground.

The FLAG_ACTIVITY_MULTIPLE_TASK flag can be set simultaneously with FLAG_ACTIVITY_NEW_TASK. In this case, a new task will always be created. New tasks may be created with either setting so these should not be set with Intents that handle sensitive information.

Example of sending an intent

        Intent intent = new Intent();

        // *** 4.1.1.1 - POINT 6 *** Do not set the FLAG_ACTIVITY_NEW_TASK flag
        // for the intent to start an activity.

        intent.setClass(this, PrivateActivity.class);
        intent.putExtra("PARAM", "Sensitive Info");

        startActivityForResult(intent, REQUEST_CODE);

In addition, you may think that there is a way to prevent the contents of an Intent from being read even if a new task was created by explicitly setting the FLAG_ACTIVITY_EXCLUDE_FROM_RECENTS flag. However, even by using this method, the contents can be read by a third party so you should avoid any usage of FLAG_ACTIVITY_NEW_TASK.

Please refer to “4.1.3.1. Combining Exported Attributes and Intent Filter Settings (For Activities)”, “4.1.3.3. Reading Intents Sent to an Activity” and “4.1.3.4. Root Activity”.

4.1.2.5. Handling the Received Intent Carefully and Securely (Required)

Risks differ depending on the types of Activity, but when processing a received Intent data, the first thing you should do is input validation.

Since Public Activities can receive Intents from untrusted sources, they can be attacked by malware. On the other hand, Private Activities will never receive any Intents from other applications directly, but it is possible that a Public Activity in the targeted application may forward a malicious Intent to a Private Activity so you should not assume that Private Activities cannot receive any malicious input. Since Partner Activities and In-house Activities also have the risk of a malicious intent being forwarded to them as well, it is necessary to perform input validation on these Intents as well.

Please refer to “3.2. Handling Input Data Carefully and Securely”.

4.1.2.6. Use an In-house Defined Signature Permission after Verifying that it is Defined by an In-House Application (Required)

Make sure to protect your in-house Activities by defining an in-house signature permission when creating the Activity. Since defining a permission in the AndroidManifest.xml file or declaring a permission request does not provide adequate security, please be sure to refer to “5.2.1.2. How to Communicate Between In-house Applications with In-house-defined Signature Permission.”

4.1.2.7. When Returning a Result, Pay Attention to the Possibility of Information Leakage of that Result from the Destination Application (Required)

When you use setResult() to return data, the reliability of the destination application will depend on the Activity type. When Public Activities are used to return data, the destination may turn out to be malware in which case that information could be used in a malicious way. For Private and In-house Activities, there is not much need to worry about data being returned to be used maliciously because they are being returned to an application you control. Partner Activities are somewhat in the middle.

As above, when returning data from Activities, you need to pay attention to information leakage from the destination application.

Example of returning data.

    public void onReturnResultClick(View view) {

        // *** 4.1.1.1 - POINT 6 *** Information that is granted to be disclosed
        // to a partner application can be returned.
        Intent intent = new Intent();
        intent.putExtra("RESULT",
            "Information that is granted to disclose to partner applications");
        setResult(RESULT_OK, intent);
        finish();
    }

4.1.2.8. Use the explicit Intents if the destination Activity is predetermined. (Required)

When using an Activity by implicit Intents, the Activity in which the Intent gets sent to is determined by the Android OS. If the Intent is mistakenly sent to malware then Information leakage can occur. On the other hand, when using an Activity by explicit Intents, only the intended Activity will receive the Intent so this is much safer.

Unless it is absolutely necessary for the user to determine which application’s Activity the intent should be sent to, you should use explicit intents and specify the destination in advance.

Using an Activity in the same application by an explicit Intent

        Intent intent = new Intent(this, PictureActivity.class);
        intent.putExtra("BARCODE", barcode);
        startActivity(intent);

Using other applicaion’s Public Activity by an explicit Intent

        Intent intent = new Intent();
        intent.setClassName(
            "org.jssec.android.activity.publicactivity",
            "org.jssec.android.activity.publicactivity.PublicActivity");
        startActivity(intent);

However, even when using another application’s Public Activity by explicit Intents, it is possible that the destination Activity could be malware. This is because even if you limit the destination by package name, it is still possible that a malicious application can fake the same package name as the real application. To eliminate this type of risk, it is necessary to consider using a Partner or In-house.

Please refer to “4.1.3.1. Combining Exported Attributes and Intent Filter Settings (For Activities)”.

4.1.2.9. Handle the Returned Data from a Requested Activity Carefully and Securely (Required)

While the risks differ slightly according to what type of Activity you accessing, when processing Intent data received as a returned value, you always need to perform input validation on the received data.

Public Activities have to accept returned Intents from untrusted sources so when accessing a Public Activity it is possible that, the returned Intents are actually sent by malware. It is often mistakenly thought that all returned Intents from a Private Activity are safe because they are originating from the same application. However, since it is possible that an intent received from an untrusted source is indirectly forwarded, you should not blindly trust the contents of that Intent. Partner and In-house Activities have a risk somewhat in the middle of Private and Public Activities. Be sure to input validate these Activities as well.

Please refer to “3.2. Handling Input Data Carefully and Securely” for more information.

4.1.2.10. Verify the Destination Activity if Linking with Another Company’s Application (Required)

Be sure to sure a whitelist when linking with another company’s application. You can do this by saving a copy of the company’s certificate hash inside your application and checking it with the certificate hash of the destination application. This will prevent a malicious application from being able to spoof Intents. Please refer to sample code section “4.1.1.3. Creating/Using Partner Activities” for the concrete implementation method. For technical details, please refer to “4.1.3.2. Validating the Requesting Application.”

4.1.2.11. When Providing an Asset Secondhand, the Asset should be Protected with the Same Level of Protection (Required)

When an information or function asset, which is protected by a permission, is provided to another application secondhand, you need to make sure that it has the same required permissions needed to access the asset. In the Android OS permission security model, only an application that has been granted proper permissions can directly access a protected asset. However, there is a loophole because an application with permissions to an asset can act as a proxy and allow access to an unprivileged application. Substantially this is the same as re-delegating a permission so it is referred to as the “Permission Re-delegation” problem. Please refer to “5.2.3.4. Permission Re-delegation Problem.”

4.1.2.12. Sending Sensitive Information Should Be Limited as much as possible (Recommended)

You should not send sensitive information to untrusted parties. Even when you are linking with a specific application, there is still a chance that you unintentionally send an Intent to a different application or that a malicious third party can steal your Intents. Please refer to “4.1.3.5. Log Output When using Activities.”

You need to consider the risk of information leakage when sending sensitive information to an Activity. You must assume that all data in Intents sent to a Public Activity can be obtained by a malicious third party. In addition, there is a variety of risks of information leakage when sending Intents to Partner or In-house Activities as well depending on the implementation. Even when sending data to Private Activities, there is a risk that the data in the Intent could be leaked through LogCat. Information in the extras part of the Intent is not output to LogCat so it is best to store sensitive information there.

However, not sending sensitive data in the first place is the only perfect solution to prevent information leakage therefore you should limit the amount of sensitive information being sent as much as possible. When it is necessary to send sensitive information, the best practice is to only send to a trusted Activity and to make sure the information cannot be leaked through LogCat.

In addition, sensitive information should never be sent to the root Activity. Root Activities are Activities that are called first when a task is created. For example, the Activity which is launched from launcher is always the root Activity.

Please refer to “4.1.3.3. Reading Intents Sent to an Activity” and “4.1.3.4. Root Activity” for more details on root Activities.

4.1.3. Advanced Topics

4.1.3.1. Combining Exported Attributes and Intent Filter Settings (For Activities)

We have explained how to implement the four types of Activities in this guidebook: Private Activities, Public Activities, Partner Activities, and In-house Activities. The various combinations of permitted settings for each type of exported attribute defined in the AndroidManifest.xml file and the intent-filter elements are defined in the table below. Please verify the compatibility of the exported attribute and intent-filter element with the Activity you are trying to create.

Table 4.1.2 Combination of exporte attributes and intent-filter
  Value of exported attribute
true false Not specified
Intent Filter defined Public (Do not Use) (Do not Use)
Intent Filter Not Defined Public, Partner,In-house Private (Do not Use)

When the exported attribute of an Activity is left unspecified, the question of whether or not the Activity is public is determined by the presence or absence of intent filters for that Activity [4]. However, in this guidebook it is forbidden to set the exported attribute to “unspecified”. In general, as mentioned previously, it is best to avoid implementations that rely on the default behavior of any given API; moreover, in cases where explicit methods — such as the exported attribute — exist for enabling important security-related settings, it is always a good idea to make use of those methods.

[4]If any intent filters are defined, the Activity is public; otherwise it is private. For more information, see https://developer.android.com/guide/topics/manifest/activity-element.html#exported

The reason why “a defined intent filter and an exported attribute of false” should not be used is that there is a loophole in Android’s behavior, and because of how Intent filters work, other application’s Activities can be called unexpectedly. The following two figures below show this explanation. Fig. 4.1.4 is an example of normal behavior in which a Private Activity (Application A) can be called by an implicit Intent only from the same application. The Intent filter (action = “X”) is defined to work only inside Application A, so this is the expected behavior.

_images/image36.png

Fig. 4.1.4 An Example of Normal Behavior

Fig. 4.1.5 below shows a scenario in which the same Intent filter (action=”X”) is defined in Application B as well as Application A. Application A is trying to call a Private Activity in the same application by sending an implicit Intent, but this time a dialogue box asking the user “Complete action using” is displayed, and the Public Activity B-1 in Application B called by mistake due to the user selection [5]. Due to this loophole, it is possible that sensitive information can be sent to other applications or application may receive an unexpected retuned value.

_images/image37.png

Fig. 4.1.5 An Example of Abnormal Behavior

As shown above, definitely not make an implicit Intent call to Private Activity using Intent filters because it allows information to be exchanged with an app that is not the app you want. In addition, we have verified that this behavior does not depend on the installation order of Application A and Application B.

[5]For terminals running Android 8.0(API Level 26) or later, it has been confirmed that the “Complete action using” dialog is not displayed and an automatic transition is made to the Public Activity B-1 in Application B in the figure. For this reason, it should be prohibited to start a private activity with intent filters by an implicit intent.

4.1.3.2. Validating the Requesting Application

Here we explain the technical information about how to implement a Partner Activity. Partner applications permit that only particular applications which are registered in a whitelist are allowed access and all other applications are denied. Because applications other than in-house applications also need access permission, we cannot use signature permissions for access control.

Simply speaking, we want to validate the application trying to use the Partner Activity by checking if it is registered in a predefined whitelist and allow access if it is and deny access if it is not. Application validation is done by obtaining the certificate from the application requesting access and comparing its hash with the one in the whitelist.

Some developers may think that it is sufficient to just compare “the package name” without obtaining “the certificate”, however, it is easy to spoof the package name of a legitimate application so this is not a good method to check for authenticity. Arbitrarily assignable values should not be used for authentication. On the other hand, because only the application developer has the developer key for signing its certificate, this is a better method for identification. Since the certificate cannot be easily spoofed, unless a malicious third party can steal the developer key, there is a very small chance that malicious application will be trusted. While it is possible to store the entire certificate in the whitelist, it is sufficient to only store the SHA-256 hash value in order to minimize the file size.

There are two restrictions for using this method.

  • The requesting application has to use startActivityForResult() instead of startActivity().
  • The requesting application can only call from an Activity.

The second restriction is the restriction imposed as a result of the first restriction, so technically there is only a single restriction.

This restriction occurs due to the restriction of Activity.getCallingPackage() which gets the package name of the calling application. Activity.getCallingPackage() returns the package name of source (requesting) application only in case it is called by startActivityForResult(), but unfortunately, when it is called by startActivity(), it only returns null. Because of this, when using the method explained here, the source (requesting) application needs to use startActivityForResult() even if it does not need to obtain a return value. In addition, startActivityForResult() can be used only in Activity classes, so the source (requester) is limited to Activities.

PartnerActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.partneractivity;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PartnerActivity extends Activity {

    // *** POINT 4 *** Verify the requesting application's certificate
    // through a predefined whitelist.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register certificate hash value of partner application
        // org.jssec.android.activity.partneruser.
        sWhitelists.add("org.jssec.android.activity.partneruser", isdebug ?
            // Certificate hash value of "androiddebugkey" in the debug.keystore.
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of "partner key" in the keystore.
            "1F039BB5 7861C27A 3916C778 8E78CE00 690B3974 3EB8259F E2627B8D 4C0EC35A");

        // Register the other partner applications in the same way.
    }
    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // *** POINT 4 *** Verify the requesting application's certificate
        // through a predefined whitelist.
        if (!checkPartner(this, getCallingActivity().getPackageName())) {
            Toast.makeText(this,
                           "Requesting application is not a partner application.",
                           Toast.LENGTH_LONG).show();
            finish();
            return;
        }

        // *** POINT 5 *** Handle the received intent carefully and securely,
        // even though the intent was sent from a partner application.
        // Omitted, since this is a sample. Refer to
        // "3.2 Handling Input Data Carefully and Securely."
        Toast.makeText(this, "Accessed by Partner App", Toast.LENGTH_LONG).show();
    }

    public void onReturnResultClick(View view) {

        // *** POINT 6 *** Only return Information that is granted to be disclosed
        // to a partner application.
        Intent intent = new Intent();
        intent.putExtra("RESULT", "Information for partner applications");
        setResult(RESULT_OK, intent);
        finish();
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

4.1.3.3. Reading Intents Sent to an Activity

In Android 5.0 (API Level 21) and later, the information retrieved with getRecentTasks() has been limited to the caller’s own tasks and possibly some other tasks such as home that are known to not be sensitive. However applications, which support the versions under Android 5.0 (API Level 21), should protect against leaking sensitive information.

The following describes the contents of this problem occurring in Android 5.0 and earlier version.

Intents that are sent to the task’s root Activity are added to the task history. A root Activity is the first Activity started in a task. It is possible for any application to read the Intents added to the task history by using the ActivityManager class.

Sample code for reading the task history from an application is shown below. To browse the task history, specify the GET_TASKS permission in the AndroidManifest.xml file.

AndroidManifest.xml
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.intent.maliciousactivity" >

  <!-- Use GET_TASKS Permission -->
  <uses-permission android:name="android.permission.GET_TASKS" />

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:theme="@style/AppTheme" >
    <activity
        android:name=".MaliciousActivity"
        android:label="@string/title_activity_main"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />

        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>
MaliciousActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.intent.maliciousactivity;

import java.util.List;
import java.util.Set;

import android.app.Activity;
import android.app.ActivityManager;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;

public class MaliciousActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.malicious_activity);

        // Get am ActivityManager instance.
        ActivityManager activityManager =
                (ActivityManager) getSystemService(ACTIVITY_SERVICE);
        // Get 100 recent task info.
        List<ActivityManager.RecentTaskInfo> list = activityManager
            .getRecentTasks(100, ActivityManager.RECENT_WITH_EXCLUDED);
        for (ActivityManager.RecentTaskInfo r : list) {
            // Get Intent sent to root Activity and Log it.
            Intent intent = r.baseIntent;
            Log.v("baseIntent", intent.toString());
            Log.v("  action:", intent.getAction());
            String target = intent.getDataString();
            if (target != null) {
                Log.v("  data:", intent.getDataString());
            }
            if (r.origActivity != null) {
                Log.v("  pkg:", r.origActivity.getPackageName() +
                                r.origActivity.getClassName());
            }
            Bundle extras = intent.getExtras();
            if (extras != null) {
                Set<String> keys = extras.keySet();
                for(String key : keys) {
                    Log.v("  extras:", key + "=" + extras.get(key).toString());
                }
            }
        }
    }
}

You can obtain specified entries of the task history by using the getRecentTasks() function of the AcitivityManager class. Information about each task is stored in an instance of the ActivityManager.RecentTaskInfo class, but Intents that were sent to the task’s root Activity are stored in its member variable baseIntent. Since the root Activity is the Activity which was started when the task was created, please be sure to not fulfill the following two conditions when calling an Activity.

  • A new task is created when the Activity is called.
  • The called Activity is the task’s root Activity which already exists in the background or foreground.

4.1.3.4. Root Activity

The root Activity is the Activity which is the starting point of a task. In other words, this is the Activity which was launched when task was created. For example, when the default Activity is launched by launcher, this Activity will be the root Activity. According to the Android specifications, the contents of Intents sent to the root Activity can be read from arbitrary applications. So, it is necessary to take countermeasures not to send sensitive information to the root Activity. In this guidebook, the following three rules have been made to avoid a called Activity to become root Activity.

  • taskAffinity should not be specified.
  • launchMode should not be specified.
  • The FLAG_ACTIVITY_NEW_TASK flag should not be set in an Intent sent to an Activity.

We consider the situations that an Activity can become the root Activity below. A called Activity becoming a root Activity depends on the following.

  • The launch mode of the called Activity
  • The task of a called Activity and its launch mode

First of all, let me explain “the Launch mode of called Activity”. Launch mode of Activity can be set by writing android:launchMode in AndroidManifest.xml. When it’s not written, it’s considered as “standard”. In addition, launch mode can be also changed by a flag to set to Intent. Flag “FLAG_ACTIVITY_NEW_TASK” launches Activity by “singleTask” mode.

The launch modes that can be specified are as per below. I’ll explain about the relation with the root activity, mainly.

standard

Activity which is called by this mode won’t be root, and it belongs to the caller side task. Every time it’s called, Instance of Activity is to be generated.

singleTop

This launch mode is the same as “standard”, except for that the instance is not generated when launching an Activity which is displayed in most front side of foreground task.

singleTask

This launch mode determines the task to which the activity would be belonging by Affinity value. When task which is matched with Activity’s affinity doesn’t exist either in background or in foreground, a new task is generated along with Activity’s instance. When task exists, neither of them is to be generated. In the former one, the launched Activity’s Instance becomes root.

singleInstance

Same as “singleTask”, but following point is different. Only root Activity can belongs to the newly generated task. So instance of Activity which was launched by this mode is always root activity. Now, we need to pay attention to the case that the class name of called Activity and the class name of Activity which is included in a task are different although the task which has the same name of called Activity’s affinity already exists.

From as above, we can get to know that Activity which was launched by “singleTask” or “singleInstance” has the possibility to become root. In order to secure the application’s safety, it should not be launched by these modes.

Next, I’ll explain about “Task of the called Activity and its launch mode”. Even if Activity is called by “standard” mode, it becomes root Activity in some cases depends on the task state to which Activity belongs.

For example, think about the case that called Activity’s task has being run already in background.

The problem here is the case that Activity Instance of the task is launched by “singleInstance”. When the affinity of Activity which was called by “standard” is same with the task, new task is to be generated by the restriction of existing “singleInstance” Activity. However, when class name of each Activity is same, task is not generated and existing activity Instance is to be used. In any cases, that called Activity becomes root Activity.

As per above, the conditions that root Activity is called are complicated, for example it depends on the state of execution. So when developing applications, it’s better to contrive that Activity is called by “standard”.

As an example of that Intent which is sent to Private Activity is read out form other application, the sample code shows the case that caller side Activity of private Activity is launched by “singleInstance” mode. In this sample code, private activity is launched by “standard” mode, but this private Activity becomes root Activity of new task due the “singleInstance” condition of caller side Activity. At this moment, sensitive information that is sent to Private Activity is recorded task history, so it can be read out from other applications. FYI, both caller side Activity and Private Activity have the same affinity.

AndroidManifest.xml(Not recommended)
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.activity.singleinstanceactivity" >

  <application
      android:allowBackup="false"
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- Set the launchMode of the root Activity to "singleInstance". -->
    <!-- Do not use taskAffinity -->
    <activity
        android:name="org.jssec.android.activity.singleinstanceactivity.PrivateUserActivity"
        android:label="@string/app_name"
        android:launchMode="singleInstance"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>

    <!-- Private activity -->
    <!-- Set the launchMode to "standard." -->
    <!-- Do not use taskAffinity -->
    <activity
        android:name="org.jssec.android.activity.singleinstanceactivity.PrivateActivity"
        android:label="@string/app_name"
        android:exported="false" />
  </application>
</manifest>

Private Activity only returns the results to the received Intent.

PrivateActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.singleinstanceactivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PrivateActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.private_activity);

        // Handle intent securely, even though the intent sent from
        // the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = getIntent().getStringExtra("PARAM");
        Toast.makeText(this,
                       String.format("Received param: \"%s\"", param),
                       Toast.LENGTH_LONG).show();
    }

    public void onReturnResultClick(View view) {
        Intent intent = new Intent();
        intent.putExtra("RESULT", "Sensitive Info");
        setResult(RESULT_OK, intent);
        finish();
    }
}

In caller side of Private Activity, Private Activity is launched by “standard” mode without setting flag to Intent.

PrivateUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.activity.singleinstanceactivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class PrivateUserActivity extends Activity {

    private static final int REQUEST_CODE = 1;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.user_activity);
    }

    public void onUseActivityClick(View view) {

        // Start the Private Activity with "standard" lanchMode.
        Intent intent = new Intent(this, PrivateActivity.class);
        intent.putExtra("PARAM", "Sensitive Info");

        startActivityForResult(intent, REQUEST_CODE);
    }

    @Override
    public void onActivityResult(int requestCode, int resultCode, Intent data) {
        super.onActivityResult(requestCode, resultCode, data);

        if (resultCode != RESULT_OK) return;

        switch (requestCode) {
        case REQUEST_CODE:
            String result = data.getStringExtra("RESULT");

            // Handle received result data carefully and securely,
            // even though the data came from the Activity in the same application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            Toast.makeText(this,
                           String.format("Received result: \"%s\"", result),
                           Toast.LENGTH_LONG).show();
            break;
        }
    }
}

4.1.3.5. Log Output When using Activities

When using an activity, the contents of intent are output to LogCat by ActivityManager. The following contents are to be output to LogCat, so in this case, sensitive information should not be included here.

  • Destination Package name
  • Destination Class name
  • URI which is set by Intent#setData()

For example, when an application sent mails, the mail address is unfortunately outputted to LogCat if the application would specify the mail address to URI. So, better to send by setting Extras.

When sending a mail as below, mail address is shown to the logCat.

MainActivity.java
    // URI is output to the LogCat.
    Uri uri = Uri.parse("mailto:test@gmail.com");
    Intent intent = new Intent(Intent.ACTION_SENDTO, uri);
    startActivity(intent);

When using Extras, mail address is no more shown to the logCat.

MainActivity.java
    // Contents which was set to Extra, is not output to the LogCat.
    Uri uri = Uri.parse("mailto:");
    Intent intent = new Intent(Intent.ACTION_SENDTO, uri);
    intent.putExtra(Intent.EXTRA_EMAIL, new String[] {"test@gmail.com"});
    startActivity(intent);

However, there are cases where other applications can read the Extras data of intent using ActivityManager#getRecentTasks(). Please refer to “4.1.2.2. Do Not Specify taskAffinity (Required)”, “4.1.2.3. Do Not Specify launchMode (Required)” and “4.1.2.4. Do Not Set the FLAG_ACTIVITY_NEW_TASK Flag for Intents that Start an Activity (Required)”.

4.1.3.6. Protecting against Fragment Injection in PreferenceActivity

When a class derived from PreferenceActivity is a public Activity, a problem known as Fragment Injection [6] may arise. To prevent this problem from arising, it is necessary to override PreferenceActivity.IsValidFragment() and check the validity of its arguments to ensure that the Activity does not handle any Fragments without intention. (For more on the safety of input data, see Section “3.2. Handling Input Data Carefully and Securely”.)

[6]For more information on Fragment Injection, consult this URL: https://securityintelligence.com/new-vulnerability-android-framework-fragment-injection/

Below we show a sample in which IsValidFragment() has been overridden. Note that, if the source code has been obfuscated, class names and the results of parameter-value comparisons may change. In this case it is necessary to pursue alternative countermeasures.

Example of an overridden isValidFragment() method

    protected boolean isValidFragment(String fragmentName) {
        // If the source code is obfuscated, we must pursue alternative strategies
        return PreferenceFragmentA.class.getName().equals(fragmentName)
                || PreferenceFragmentB.class.getName().equals(fragmentName)
                || PreferenceFragmentC.class.getName().equals(fragmentName)
                || PreferenceFragmentD.class.getName().equals(fragmentName);
    }

Note that if the app’s targetSdkVersion is 19 or greater, failure to override PreferenceActivity.isValidFragment() will result in a security exception and the termination of the app whenever a Fragment is inserted [when isValidFragment() is called], so in this case overriding PreferenceActivity.isValidFragment() is mandatory.

4.1.3.7. The Autofill framework

The Autofill framework was added in Android 8.0 (API Level 26). Using this framework allows apps to store information entered by users—such as user names, passwords, addresses, phone numbers, and credit cards—and subsequently to retrieve this information as necessary to allow the app to fill in forms automatically. This is a convenient mechanism that reduces data-entry burdens for users; however, because it allows a given app to pass sensitive information such as passwords and credit cards to other apps, it must be handled with appropriate care.

Overview of the framework
2 components

In what follows, we provide an overview of the two components [7] registered by the Autofill framework.

  • Apps eligible for Autofill (user apps):
    • Pass view information (text and attributes) to Autofill service; receive information from Autofill service as needed to auto-fill forms.
    • All apps that have Activities are user apps (when in the foreground).
    • It is possible for all Views of all user apps to be eligible for Autofill. It is also possible to explicitly specify that any given individual view should be ineligible for Autofill.
    • It is also possible to restrict an app’s use of Autofill to the Autofill service within the same package.
  • Services that provide Autofill (Autofill services):
    • Save View information passed by an app (requires user permission); provide an app with information needed for Autofill in a View (candidate lists).
    • The Views eligible for this information saving are determined by the Autofill service. (Within the Autofill framework, by default information on all Views contained in an Activity are passed to the Autofill service.)
    • It is also possible to construct Autofill services provided by third parties.
    • It is possible for several to be present within a single terminal with only the service selected by the user via “Settings” enabled (“None” is also a possible selection.)
    • It also possible for a Service to provide a UI to validate users via password entry or other mechanisms to protect the security of the user information handled.
[7]The “user app” and the “Autofill service” may belong to the same package (the same APK file) or to different packages.
Procedural flowchart for the Autofill framework

Fig. 4.1.6 is a flowchart illustrating the procedural flow of interactions among Autofill-related components during Autofill. When triggered by events such as motion of the focus in a user app’s View, information on that View (primarily the parent-child relationships and various attributes of the View) is passed via the Autofill framework to the Autofill service selected within “Settings”. Based on the data it receives, the Autofill service fetches from a database the information (candidate lists) needed for Autofill, then returns this to the framework. The framework displays a candidate list to the user, and the app carries out the Autofill operation using the data selected by the user.

_images/image38.png

Fig. 4.1.6 Procedural flow among components for Autofill

Next, Fig. 4.1.7 is a flowchart illustrating the procedural flow for saving user data via Autofill. Upon a triggering event such as when AutofillManager#commit() is called or when an Activity is unfocused, if any Autofilled values for the View have been modified and the user has granted permission via the Save Permission dialog box displayed by the Autofill framework, information on the View (including text) is passed via the Autofill framework to the Autofill service selected via “Settings”, and the Autofill service stores information in the database to complete the procedural sequence.

_images/image39.png

Fig. 4.1.7 Procedural flow among components for saving user data

Security concerns for Autofill user apps

As noted in the section “Overview of the framework” above, the security model adopted by the Autofill framework is premised on the assumption that the user configures the “Settings” to select secure Autofill services and makes appropriate decisions regarding which data to pass to which Autofill service when storing data.

However, if a user unwittingly selects a non-secure Autofill service, there is a possibility that the user may permit the storage of sensitive information that should not be passed to the Autofill service. In what follows we discuss the damage that could result in such a scenario.

When saving information, if the user selects an Autofill service and grants it permission via the Save Permission dialog box, information for all Views contained in the Activity currently displayed by the app in use may be passed to the Autofill service. If the Autofill service is malware, or if other security issues arise—for example, if View information is stored by the Autofill service on an external storage medium or on an insecure cloud service—this could create the risk that information handled by the app might be leaked.

On the other hand, during Autofill, if the user has selected a piece of malware as the Autofill service, values transmitted by the malware may be entered as input. At this point, if the security of the data input is not adequately validated by the app or by the cloud services to which the app sends data, risks of information leakage and/or termination of the app or the service may arise.

Note that, as discussed above in the section “2 components”, apps with Activities are automatically eligible for Autofill, and thus all developers of apps with Activities must take the risks described above into account when designing and implementing apps. In what follows we will present countermeasures to mitigate the risks described above we recommend that these be adopted as appropriate based on a consideration of the countermeasures required by an app—referring to “3.1.3. Asset Classification and Protective Countermeasures” and other relevant resources.

Steps to mitigate risk: 1

As discussed above, security within the Autofill framework is ultimately guaranteed only at the user’s discretion. For this reason, the range of countermeasures available to apps is somewhat limited. However, there is one way to mitigate the concerns described above: Setting the importantForAutofill attribute for a view to “no” ensures that no View information is passed to the Autofill service (i.e. the View is made ineligible for Autofill), even if the user cannot make appropriate selections or permissions (such as selecting a piece of malware as the Autofill service) [8].

[8]Even after taking this step, in some cases it may not be possible to avoid the security concerns described above—for example, if the user intentionally uses Autofill. Implementing the steps described in “Steps to mitigate risk: 2” will improve security in these cases.

The importantForAutofill attribute may be specified by any of the following methods.

  • Set the importantForAutofill attribute in the layout XML
  • Call View#setImportantForAutofill()

The values that may be set for this attribute are shown below. Make sure to use values appropriate for the specified range. In particular, note with caution that, when a value is set to “no” for a View, that View will be ineligible for Autofill, but its children will remain eligible for Autofill. The default value is “auto.”

Table 4.1.3 Eligible for Autofill?

Value

Name of constant
Specified View Child View

“auto”

IMPORTANT_FOR_AUTOFILL_AUTO
“auto” [9] “auto” [9]

“no”

IMPORTANT_FOR_AUTOFILL_NO
No Yes

“noExcludeDescendants”

IMPORTANT_FOR_AUTOFILL_NO_EXCLUDE_DESCENDANTS
No No

“yes”

IMPORTANT_FOR_AUTOFILL_YES
Yes Yes

“yesExcludeDescendants”

IMPORTANT_FOR_AUTOFILL_YES_EXCLUDE_DESCENDANTS
Yes No
[9](1, 2) Determined by Autofill framework

It is also possible to use AutofillManager#hasEnabledAutofillServices() to restrict the use of Autofill functionality to Autofill services within the same package.

In what follows, we show an example that all Views in an Activity are eligible for Autofill (whether or not a View actually uses Autofill is determined by the Autofill service) only in case that “Settings” have been configured to use a Autofill service within the same package. It is also possible to call View#setImportantForAutofill() for individual Views.

DisableForOtherServiceActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.autofillframework.autofillapp;

import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import android.view.View;
import android.view.autofill.AutofillManager;
import android.widget.EditText;
import android.widget.TextView;

import org.jssec.android.autofillframework.R;

public class DisableForOtherServiceActivity extends AppCompatActivity {
    private boolean mIsAutofillEnabled = false;

    private EditText mUsernameEditText;
    private EditText mPasswordEditText;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.disable_for_other_service_activity);

        mUsernameEditText = (EditText)findViewById(R.id.field_username);
        mPasswordEditText = (EditText)findViewById(R.id.field_password);

        findViewById(R.id.button_login).setOnClickListener(
            new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                login();
            }
        });

        findViewById(R.id.button_clear).setOnClickListener(
            new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                resetFields();
            }
        });

        //Because the floating-toolbar is not supported for this Activity,
        // Autofill may be used by selecting "Automatic Input"
    }

    @Override
    protected void onStart() {
        super.onStart();
    }

    @Override
    protected void onResume() {
        super.onResume();
        updateAutofillStatus();
        View rootView = this.getWindow().getDecorView();
        if (!mIsAutofillEnabled) {
            //If not using Autofill service within the same package,
            // make all Views ineligible for Autofill
            rootView.setImportantForAutofill(View.IMPORTANT_FOR_AUTOFILL_NO_EXCLUDE_DESCENDANTS);
        } else {
            //If using Autofill service within the same package,
            // make all Views eligible for Autofill
            //View#setImportantForAutofill() may also be called for specific Views
            rootView.setImportantForAutofill(View.IMPORTANT_FOR_AUTOFILL_AUTO);
        }
    }

    private void login() {
        String username = mUsernameEditText.getText().toString();
        String password = mPasswordEditText.getText().toString();

        //Validate data obtained from View
        if (!Util.validateUsername(username) || !Util.validatePassword(password)) {
            //appropriate error handling
        }

        //Send username, password to server

        finish();
    }

    private void resetFields() {
        mUsernameEditText.setText("");
        mPasswordEditText.setText("");
    }

    private void updateAutofillStatus() {
        AutofillManager mgr = getSystemService(AutofillManager.class);

        mIsAutofillEnabled = mgr.hasEnabledAutofillServices();

        TextView statusView = (TextView) findViewById(R.id.label_autofill_status);
        String status = "Our autofill service is --.";
        if (mIsAutofillEnabled) {
            status = "autofill service within same package is enabled";
        } else {
            status = "autofill service within same package is disabled";
        }
        statusView.setText(status);
    }
}
Steps to mitigate risk: 2

Even in cases where an app has implemented the steps described in the previous section (“Steps to mitigate risk: 1”), the user can forcibly enable the use of Autofill by long-pressing the View, displaying the floating toolbar or a similar control interface, and selecting “Automatic input”. In this case, information for all Views—including Views for which the importantForAutofill attribute has been set to “no,” or for which similar steps have been taken—will be passed to the Autofill service.

It is possible to avoid the risk of information leakage even in circumstances such as these by deleting the “Automatic Input” option from the floating-toolbar menu and other control interfaces; this step is to be carried out in addition to the procedures described in “Steps to mitigate risk: 1”.

Sample code for this purpose is shown below.

DisableAutofillActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.autofillframework.autofillapp;

import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import android.view.ActionMode;
import android.view.Menu;
import android.view.MenuItem;
import android.view.SubMenu;
import android.view.View;
import android.widget.EditText;

import org.jssec.android.autofillframework.R;

public class DisableAutofillActivity extends AppCompatActivity {

    private EditText mUsernameEditText;
    private EditText mPasswordEditText;

    private ActionMode.Callback mActionModeCallback;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.disable_autofill_activity);

        mUsernameEditText = (EditText) findViewById(R.id.field_username);
        mPasswordEditText = (EditText) findViewById(R.id.field_password);

        findViewById(R.id.button_login).setOnClickListener(
            new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                login();
            }
        });

        findViewById(R.id.button_clear).setOnClickListener(
            new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                resetFields();
            }
        });

        mActionModeCallback = new ActionMode.Callback() {
            @Override
            public boolean onCreateActionMode(ActionMode mode, Menu menu) {
                removeAutofillFromMenu(menu);
                return true;
            }

            @Override
            public boolean onPrepareActionMode(ActionMode mode, Menu menu) {
                removeAutofillFromMenu(menu);
                return true;
            }

            @Override
            public boolean onActionItemClicked(ActionMode mode, MenuItem item) {
                return false;
            }

            @Override
            public void onDestroyActionMode(ActionMode mode) {
            }
        };

        //Delete "Automatic Input" from floating-toolbar
        setMenu();
    }

    void setMenu() {
        if (mActionModeCallback == null) {
            return;
        }
        //Register callback for all editable TextViews contained in Activity
        mUsernameEditText
                .setCustomInsertionActionModeCallback(mActionModeCallback);
        mPasswordEditText
                .setCustomInsertionActionModeCallback(mActionModeCallback);
    }

    //Traverse all menu levels, deleting "Automatic Input" from each
    void removeAutofillFromMenu(Menu menu) {
        if (menu.findItem(android.R.id.autofill) != null) {
            menu.removeItem(android.R.id.autofill);
        }

        for (int i=0; i<menu.size(); i++) {
            SubMenu submenu = menu.getItem(i).getSubMenu();
            if (submenu != null) {
                removeAutofillFromMenu(submenu);
            }
        }
    }

    private void login() {
        String username = mUsernameEditText.getText().toString();
        String password = mPasswordEditText.getText().toString();

        //Validate data obtained from View
        if (!Util.validateUsername(username) || Util.validatePassword(password)) {
            //appropriate error handling
        }

        //Send username, password to server

        finish();
    }

    private void resetFields() {
        mUsernameEditText.setText("");
        mPasswordEditText.setText("");
    }
}
Steps to mitigate risk: 3

In Android 9.0 (API level 28), AutofillManager#getAutofillServiceComponentName() can be used to find out what components of Autofill Service are currently enabled. This can be used to obtain the package name and confirm whether the application itself is considered a trusted Autofill Service.

In this case, as described in “4.1.3.2. Validating the Requesting Application” above, because a package name could be spoofed, identity verification solely using this method cannot be recommended. In the same way as the example described in 4.1.3.2., the Autofill Service certificate must be obtained from the package name, and the identity must be verified by checking that the certificate matches one that was registered beforehand in a whitelist. This method is described in detail in 4.1.3.2., and so refer to this section for more information.

An example is shown below where Autofill is used for all views of an activity only when an Autofill Service that was registered beforehand in the whitelist is enabled.

EnableOnlyWhitelistedServiceActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.autofillframework.autofillapp;

import android.content.ComponentName;
import android.content.Context;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.view.autofill.AutofillManager;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.autofillframework.R;

public class EnableOnlyWhitelistedServiceActivity extends Activity {
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        sWhitelists = new PkgCertWhitelists();
        // Register hash value of the certificate of trusted Autofill Service
        sWhitelists.add("com.google.android.gms",
            "1975B2F17177BC89A5DFF31F9E64A6CAE281A53DC1D1D59B1D147FE1C82AFA00");
        // In a similer manner register other trusting Autofill Srvices
        //    :
    }
    private static boolean checkService(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    private boolean mIsAutofillEnabled = false;

    private EditText mUsernameEditText;
    private EditText mPasswordEditText;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.enable_only_whitelisted_service_activity);

        mUsernameEditText = (EditText)findViewById(R.id.field_username);
        mPasswordEditText = (EditText)findViewById(R.id.field_password);

        findViewById(R.id.button_login).setOnClickListener(
            new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                login();
            }
        });

        findViewById(R.id.button_clear).setOnClickListener(
            new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                resetFields();
            }
        });
        // Because the floating-toolbar is not supported for this Activity,
        // Autofill may be used by selecting "Automatic Input"
    }

    @Override
    protected void onStart() {
        super.onStart();
    }

    @Override
    protected void onResume() {
        super.onResume();
        updateAutofillStatus();
        View rootView = this.getWindow().getDecorView();
        if (!mIsAutofillEnabled) {
            // If the Autofill Service is not on white list,
            // exclude all Views from the target of Autofill
            rootView.setImportantForAutofill(View.IMPORTANT_FOR_AUTOFILL_NO_EXCLUDE_DESCENDANTS);
        } else {
            // If the Autofill Service is on white list,
            // include all Views as the target of Autofill
            // It is also possible to call View#setImportantForAutofill()
            // for a specific View
            rootView.setImportantForAutofill(View.IMPORTANT_FOR_AUTOFILL_AUTO);
        }
    }
    private void login() {
        String username = mUsernameEditText.getText().toString();
        String password = mPasswordEditText.getText().toString();

        // Validate safetiness of data obtained from View
        if (!Util.validateUsername(username) || !Util.validatePassword(password)) {
            // Do apropriate error handling
        }

        // Eend username and passowrd to the Server

        finish();
    }

    private void resetFields() {
        mUsernameEditText.setText("");
        mPasswordEditText.setText("");
    }

    private void updateAutofillStatus() {
        AutofillManager mgr = getSystemService(AutofillManager.class);
        // From Android 9.0 (API Level 28), it is possible to get
        // component info. of Autofill Service
        ComponentName componentName = mgr.getAutofillServiceComponentName();
        String componentNameString = "None";
        if (componentName == null) {
            // "Settings"‐"Autofill Service" is set to "None"
            mIsAutofillEnabled = false;
            Toast.makeText(this, "No Autofill Service", Toast.LENGTH_LONG).show();
        } else {
            String autofillServicePackage = componentName.getPackageName();
            // Check if the Autofill Service is registered in white list
            if (checkService(this, autofillServicePackage)) {
                mIsAutofillEnabled = true;
                Toast.makeText(this,
                    "Trusted Autofill Service: " + autofillServicePackage,
                    Toast.LENGTH_LONG).show();
            } else {
                Toast.makeText(this,
                    "Untrusted Autofill Service: " + autofillServicePackage,
                    Toast.LENGTH_LONG).show();
                // if not on white list, do not use Autofill Service
                mIsAutofillEnabled = false;
            }
            componentNameString =
                    autofillServicePackage + " / " + componentName.getClassName();
        }

        TextView statusView = (TextView) findViewById(R.id.label_autofill_status);
        String status = "current autofill service: \n" + componentNameString;
        statusView.setText(status);
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

4.2. Receiving/Sending Broadcasts

4.2.1. Sample Code

Creating Broadcast Receiver is required to receive Broadcast. Risks and countermeasures of using Broadcast Receiver differ depending on the type of the received Broadcast.

You can find your Broadcast Receiver in the following judgment flow. The receiving applications cannot check the package names of Broadcast-sending applications that are necessary for linking with the partners. As a result, Broadcast Receiver for the partners cannot be created.

Table 4.2.1 Definition of broadcast receiver types
Type Definition
Private broadcast receiver A broadcast receiver that can receive broadcasts only from the same application, therefore is the safest broadcast receiver
Public broadcast receiver A broadcast receiver that can receive broadcasts from an unspecified large number of applications.
In-house broadcast receiver A broadcast receiver that can receive broadcasts only from other In-house applications
_images/image40.png

Fig. 4.2.1 Flow Figure to select Broadcast Receiver Type

In addition, Broadcast Receiver can be divided into 2 types based on the definition methods, Static Broadcast Receiver and Dynamic Broadcast Receiver. The differences between them can be found in the following figure. In the sample code, an implementation method for each type is shown. The implementation method for sending applications is also described because the countermeasure for sending information is determined depending on the receivers.

Table 4.2.2 Deinition Method and Characteristic of Broadcast Receivers
  Definition method Characteristic
Static Broadcast Receiver Define by writing <receiver> elements in AndroidManifest.xml
  • There is a restriction that some Broadcasts(e.g. ACTION_BATTERY_CHANGED) sent by system cannot be received.
  • Broadcast can be received from application’s initial boot till uninstallation.
  • If the app’s targetSDKVersion is 26 or above, then, on terminals running Android 8.0 (API level 26) or later, Broadcast Receivers may not be registered for implicit Broadcast Intents [10]
Dynamic Broadcast Receiver By calling registerReceiver() and unregsterReceiver() in a program, register/unregister Broadcast Receiver dynamically.
  • Broadcasts which cannot be received by static Broadcast Receiver can be received.
  • The period of receiving Broadcasts can be controlled by the program. For example, Broadcasts can be received only while Activity is on the front side.
  • Private Broadcast Receiver cannot be created.
[10]As exceptions to this rule, some implicit Broadcast Intents sent by the system may use Broadcast Receivers. For more information, consult the following URL. https://developer.android.com/guide/components/broadcast-exceptions.html

4.2.1.1. Private Broadcast Receiver - Receiving/Sending Broadcasts

Private Broadcast Receiver is the safest Broadcast Receiver because only Broadcasts sent from within the application can be received. Dynamic Broadcast Receiver cannot be registered as Private, so Private Broadcast Receiver consists of only Static Broadcast Receivers.

Points (Receiving Broadcasts):

  1. Explicitly set the exported attribute to false.
  2. Handle the received intent carefully and securely, even though the intent was sent from within the same application.
  3. Sensitive information can be sent as the returned results since the requests come from within the same application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.broadcast.privatereceiver" >

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >

    <!-- Private Broadcast Receiver -->
    <!-- *** POINT 1 *** Explicitly set the exported attribute to false. -->
    <receiver
        android:name=".PrivateReceiver"
        android:exported="false" />

    <activity
        android:name=".PrivateSenderActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>
PrivateReceiver.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.privatereceiver;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.widget.Toast;

public class PrivateReceiver extends BroadcastReceiver {

    @Override
    public void onReceive(Context context, Intent intent) {

        // *** POINT 2 *** Handle the received intent carefully and securely,
        // even though the intent was sent from within the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = intent.getStringExtra("PARAM");
        Toast.makeText(context,
                       String.format("Received param: \"%s\"", param),
                       Toast.LENGTH_SHORT).show();

        // *** POINT 3 *** Sensitive information can be sent as the returned
        // results since the requests come from within the same application.
        setResultCode(Activity.RESULT_OK);
        setResultData("Sensitive Info from Receiver");
        abortBroadcast();
    }
}

The sample code for sending Broadcasts to private Broadcast Receiver is shown below.

Points (Sending Broadcasts):

  1. Use the explicit Intent with class specified to call a receiver within the same application.
  2. Sensitive information can be sent since the destination Receiver is within the same application.
  3. Handle the received result data carefully and securely, even though the data came from the Receiver within the same application.
PrivateSenderActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.privatereceiver;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class PrivateSenderActivity extends Activity {

    public void onSendNormalClick(View view) {
        // *** POINT 4 *** Use the explicit Intent with class specified to call
        // a receiver within the same application.
        Intent intent = new Intent(this, PrivateReceiver.class);

        // *** POINT 5 *** Sensitive information can be sent since the destination
        // Receiver is within the same application.
        intent.putExtra("PARAM", "Sensitive Info from Sender");
        sendBroadcast(intent);
    }

    public void onSendOrderedClick(View view) {
        // *** POINT 4 *** Use the explicit Intent with class specified to call
        // a receiver within the same application.
        Intent intent = new Intent(this, PrivateReceiver.class);

        // *** POINT 5 *** Sensitive information can be sent since the destination
        // Receiver is within the same application.
        intent.putExtra("PARAM", "Sensitive Info from Sender");
        sendOrderedBroadcast(intent, null, mResultReceiver, null, 0, null, null);
    }

    private BroadcastReceiver mResultReceiver = new BroadcastReceiver() {
            @Override
            public void onReceive(Context context, Intent intent) {

                // *** POINT 6 *** Handle the received result data carefully and
                // securely, even though the data came from the Receiver within
                // the same application.
                // Omitted, since this is a sample. Please refer to
                // "3.2 Handling Input Data Carefully and Securely."
                String data = getResultData();
                PrivateSenderActivity.this
                    .logLine(String.format("Received result: \"%s\"", data));
            }
        };

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}

4.2.1.2. Public Broadcast Receiver - Receiving/Sending Broadcasts

Public Broadcast Receiver is the Broadcast Receiver that can receive Broadcasts from unspecified large number of applications, so it’s necessary to pay attention that it may receive Broadcasts from malware.

Points (Receiving Broadcasts):

  1. Explicitly set the exported attribute to true.
  2. Handle the received Intent carefully and securely.
  3. When returning a result, do not include sensitive information.

Public Receiver which is the sample code for public Broadcast Receiver can be used both in static Broadcast Receiver and Dynamic Broadcast Receiver.

PublicReceiver.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.publicreceiver;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.widget.Toast;

public class PublicReceiver extends BroadcastReceiver {

    private static final String MY_BROADCAST_PUBLIC =
        "org.jssec.android.broadcast.MY_BROADCAST_PUBLIC";

    public boolean isDynamic = false;
    private String getName() {
        return isDynamic ? "Public Dynamic Broadcast Receiver" :
                           "Public Static Broadcast Receiver";
    }

    @Override
    public void onReceive(Context context, Intent intent) {

        // *** POINT 2 *** Handle the received Intent carefully and securely.
        // Since this is a public broadcast receiver, the requesting application
        // may be malware.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        if (MY_BROADCAST_PUBLIC.equals(intent.getAction())) {
            String param = intent.getStringExtra("PARAM");
            Toast.makeText(context,
                           String.format("%s:\nReceived param: \"%s\"",
                                         getName(), param),
                           Toast.LENGTH_SHORT).show();
        }

        // *** POINT 3 *** When returning a result, do not include sensitive
        // information.
        // Since this is a public broadcast receiver, the requesting application
        // may be malware.
        // If no problem when the information is taken by malware, it can be
        // returned as result.
        setResultCode(Activity.RESULT_OK);
        setResultData(String.format("Not Sensitive Info from %s", getName()));
        abortBroadcast();
    }
}

Static Broadcast Receive is defined in AndroidManifest.xml. Note with caution that—depending on the terminal version—reception of implicit Broadcast Intents may be restricted, as in Table 4.2.2.

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.broadcast.publicreceiver" >

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >

    <!-- Public Static Broadcast Receiver -->
    <!-- *** POINT 1 *** Explicitly set the exported attribute to true. -->
    <receiver
        android:name=".PublicReceiver"
        android:exported="true" >
      <intent-filter>
        <action android:name="org.jssec.android.broadcast.MY_BROADCAST_PUBLIC" />
      </intent-filter>
    </receiver>

    <service
        android:name=".DynamicReceiverService"
        android:exported="false" />

    <activity
        android:name=".PublicReceiverActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>

In Dynamic Broadcast Receiver, registration/unregistration is executed by calling registerReceiver() or unregisterReceiver() in the program. In order to execute registration/unregistration by button operations, the button is allocated on PublicReceiverActivity. Since the scope of Dynamic Broadcast Receiver Instance is longer than PublicReceiverActivity, it cannot be kept as the member variable of PublicReceiverActivity. In this case, keep the Dynamic Broadcast Receiver Instance as the member variable of DynamicReceiverService, and then start/end DynamicReceiverService from PublicReceiverActivity to register/unregister Dynamic Broadcast Receiver indirectly.

DynamicReceiverService.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.publicreceiver;

import android.app.Service;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.IBinder;
import android.widget.Toast;

public class DynamicReceiverService extends Service {

    private static final String MY_BROADCAST_PUBLIC =
        "org.jssec.android.broadcast.MY_BROADCAST_PUBLIC";

    private PublicReceiver mReceiver;

    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }

    @Override
    public void onCreate() {
        super.onCreate();

        // Register Public Dynamic Broadcast Receiver.
        mReceiver = new PublicReceiver();
        mReceiver.isDynamic = true;
        IntentFilter filter = new IntentFilter();
        filter.addAction(MY_BROADCAST_PUBLIC);
        // Prioritize Dynamic Broadcast Receiver,
        // rather than Static Broadcast Receiver.
        filter.setPriority(1);
        registerReceiver(mReceiver, filter);
        Toast.makeText(this,
                       "Registered Dynamic Broadcast Receiver.",
                       Toast.LENGTH_SHORT).show();
    }

    @Override
    public void onDestroy() {
        super.onDestroy();

        // Unregister Public Dynamic Broadcast Receiver.
        unregisterReceiver(mReceiver);
        mReceiver = null;
        Toast.makeText(this,
                       "Unregistered Dynamic Broadcast Receiver.",
                       Toast.LENGTH_SHORT).show();
    }
}
PublicReceiverActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.publicreceiver;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;

public class PublicReceiverActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }

    public void onRegisterReceiverClick(View view) {
        Intent intent = new Intent(this, DynamicReceiverService.class);
        startService(intent);
    }

    public void onUnregisterReceiverClick(View view) {
        Intent intent = new Intent(this, DynamicReceiverService.class);
        stopService(intent);
    }
}

Next, the sample code for sending Broadcasts to public Broadcast Receiver is shown. When sending Broadcasts to public Broadcast Receiver, it’s necessary to pay attention that Broadcasts can be received by malware.

Points (Sending Broadcasts):

  1. Do not send sensitive information.
  2. When receiving a result, handle the result data carefully and securely.
PublicSenderActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.publicsender;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class PublicSenderActivity extends Activity {

    private static final String MY_BROADCAST_PUBLIC =
        "org.jssec.android.broadcast.MY_BROADCAST_PUBLIC";

    public void onSendNormalClick(View view) {
        // *** POINT 4 *** Do not send sensitive information.
        Intent intent = new Intent(MY_BROADCAST_PUBLIC);
        intent.putExtra("PARAM", "Not Sensitive Info from Sender");
        sendBroadcast(intent);
    }

    public void onSendOrderedClick(View view) {
        // *** POINT 4 *** Do not send sensitive information.
        Intent intent = new Intent(MY_BROADCAST_PUBLIC);
        intent.putExtra("PARAM", "Not Sensitive Info from Sender");
        sendOrderedBroadcast(intent, null, mResultReceiver, null, 0, null, null);
    }

    public void onSendStickyClick(View view) {
        // *** POINT 4 *** Do not send sensitive information.
        Intent intent = new Intent(MY_BROADCAST_PUBLIC);
        intent.putExtra("PARAM", "Not Sensitive Info from Sender");
        //sendStickyBroadcast is deprecated at API Level 21
        sendStickyBroadcast(intent);
    }

    public void onSendStickyOrderedClick(View view) {
        // *** POINT 4 *** Do not send sensitive information.
        Intent intent = new Intent(MY_BROADCAST_PUBLIC);
        intent.putExtra("PARAM", "Not Sensitive Info from Sender");
        //sendStickyOrderedBroadcast is deprecated at API Level 21
        sendStickyOrderedBroadcast(intent, mResultReceiver, null, 0, null, null);
    }

    public void onRemoveStickyClick(View view) {
        Intent intent = new Intent(MY_BROADCAST_PUBLIC);
        //removeStickyBroadcast is deprecated at API Level 21
        removeStickyBroadcast(intent);
    }

    private BroadcastReceiver mResultReceiver = new BroadcastReceiver() {
            @Override
            public void onReceive(Context context, Intent intent) {

                // *** POINT 5 *** When receiving a result, handle the result data
                // carefully and securely.
                // Omitted, since this is a sample. Please refer to
                // "3.2 Handling Input Data Carefully and Securely."
                String data = getResultData();
                PublicSenderActivity.this
                    .logLine(String.format("Received result: \"%s\"", data));
            }
        };

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}

4.2.1.3. In-house Broadcast Receiver - Receiving/Sending Broadcasts

In-house Broadcast Receiver is the Broadcast Receiver that will never receive any Broadcasts sent from other than in-house applications. It consists of several in-house applications, and it’s used to protect the information or functions that in-house application handles.

Points (Receiving Broadcasts):

  1. Define an in-house signature permission to receive Broadcasts.
  2. Declare to use the in-house signature permission to receive results.
  3. Explicitly set the exported attribute to true.
  4. Require the in-house signature permission by the Static Broadcast Receiver definition.
  5. Require the in-house signature permission to register Dynamic Broadcast Receiver.
  6. Verify that the in-house signature permission is defined by an in-house application.
  7. Handle the received intent carefully and securely, even though the Broadcast was sent from an in-house application.
  8. Sensitive information can be returned since the requesting application is in-house.
  9. When Exporting an APK, sign the APK with the same developer key as the sending application.

In-house Receiver which is a sample code of in-house Broadcast Receiver is to be used both in Static Broadcast Receiver and Dynamic Broadcast Receiver.

InhouseReceiver.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.inhousereceiver;

import org.jssec.android.shared.SigPerm;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.widget.Toast;

public class InhouseReceiver extends BroadcastReceiver {

    // In-house Signature Permission
    private static final String MY_PERMISSION =
            "org.jssec.android.broadcast.inhousereceiver.MY_PERMISSION";

    // In-house certificate hash value
    private static String sMyCertHash = null;
    private static String myCertHash(Context context) {
        if (sMyCertHash == null) {
            if (Utils.isDebuggable(context)) {
                // Certificate hash value of "androiddebugkey" in the
                // debug.keystore.
                sMyCertHash = "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255";
            } else {
                // Certificate hash value of "my company key" in the keystore.
                sMyCertHash = "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA";
            }
        }
        return sMyCertHash;
    }

    private static final String MY_BROADCAST_INHOUSE =
        "org.jssec.android.broadcast.MY_BROADCAST_INHOUSE";

    public boolean isDynamic = false;
    private String getName() {
        return isDynamic ? "In-house Dynamic Broadcast Receiver" :
                           "In-house Static Broadcast Receiver";
    }

    @Override
    public void onReceive(Context context, Intent intent) {

        // *** POINT 6 *** Verify that the in-house signature permission is
        // defined by an in-house application.
        if (!SigPerm.test(context, MY_PERMISSION, myCertHash(context))) {
            Toast.makeText(context,"The in-house signature permission is not declared by in-house application.", Toast.LENGTH_LONG).show();
            return;
        }

        // *** POINT 7 *** Handle the received intent carefully and securely,
        // even though the Broadcast was sent from an in-house application..
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        if (MY_BROADCAST_INHOUSE.equals(intent.getAction())) {
            String param = intent.getStringExtra("PARAM");
            Toast.makeText(context, String.format("%s:\nReceived param: \"%s\"", getName(), param), Toast.LENGTH_SHORT).show();
        }

        // *** POINT 8 *** Sensitive information can be returned since the
        // requesting application is in-house.
        setResultCode(Activity.RESULT_OK);
        setResultData(String.format("Sensitive Info from %s", getName()));
        abortBroadcast();
    }
}

Static Broadcast Receiver is to be defined in AndroidManifest.xml.Note with caution that—depending on the terminal version—reception of implicit Broadcast Intents may be restricted, as in Table 4.2.2.

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.broadcast.inhousereceiver" >

  <!-- *** POINT 1 *** Define an in-house signature permission to receive Broadcasts -->
  <permission
      android:name="org.jssec.android.broadcast.inhousereceiver.MY_PERMISSION"
      android:protectionLevel="signature" />

  <!-- *** POINT 2 *** Declare to use the in-house signature permission to receive results. -->
  <uses-permission
      android:name="org.jssec.android.broadcast.inhousesender.MY_PERMISSION" />

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >

    <!-- *** POINT 3 *** Explicitly set the exported attribute to true. -->
    <!-- *** POINT 4 *** Require the in-house signature permission by the Static Broadcast Receiver definition. -->
    <receiver
        android:name=".InhouseReceiver"
        android:permission="org.jssec.android.broadcast.inhousereceiver.MY_PERMISSION"
        android:exported="true">
      <intent-filter>
        <action android:name="org.jssec.android.broadcast.MY_BROADCAST_INHOUSE" />
      </intent-filter>
    </receiver>

    <service
        android:name=".DynamicReceiverService"
        android:exported="false" />

    <activity
        android:name=".InhouseReceiverActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>

</manifest>

Dynamic Broadcast Receiver executes registration/unregistration by calling registerReceiver() or unregisterReceiver() in the program. In order to execute registration/unregistration by the button operations, the button is arranged on InhouseReceiverActivity. Since the scope of Dynamic Broadcast Receiver Instance is longer than InhouseReceiverActivity, it cannot be kept as the member variable of InhouseReceiverActivity. So, keep Dynamic Broadcast Receiver Instance as the member variable of DynamicReceiverService, and then start/end DynamicReceiverService from InhouseReceiverActivity to register/unregister Dynamic Broadcast Receiver indirectly.

InhouseReceiverActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.inhousereceiver;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;

public class InhouseReceiverActivity extends Activity {
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }

    public void onRegisterReceiverClick(View view) {
        Intent intent = new Intent(this, DynamicReceiverService.class);
        startService(intent);
    }

    public void onUnregisterReceiverClick(View view) {
        Intent intent = new Intent(this, DynamicReceiverService.class);
        stopService(intent);
    }
}
DynamicReceiverService.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.inhousereceiver;

import android.app.Service;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.IBinder;
import android.widget.Toast;

public class DynamicReceiverService extends Service {

    private static final String MY_BROADCAST_INHOUSE =
        "org.jssec.android.broadcast.MY_BROADCAST_INHOUSE";

    private InhouseReceiver mReceiver;

    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }

    @Override
    public void onCreate() {
        super.onCreate();

        mReceiver = new InhouseReceiver();
        mReceiver.isDynamic = true;
        IntentFilter filter = new IntentFilter();
        filter.addAction(MY_BROADCAST_INHOUSE);
        // Prioritize Dynamic Broadcast Receiver,
        // rather than Static Broadcast Receiver.
        filter.setPriority(1);

        // *** POINT 5 *** When registering a dynamic broadcast receiver, require
        // the in-house signature permission.
        registerReceiver(mReceiver, filter,
                        "org.jssec.android.broadcast.inhousereceiver.MY_PERMISSION",
                        null);

        Toast.makeText(this,
                       "Registered Dynamic Broadcast Receiver.",
                       Toast.LENGTH_SHORT).show();
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        unregisterReceiver(mReceiver);
        mReceiver = null;
        Toast.makeText(this,
                       "Unregistered Dynamic Broadcast Receiver.",
                       Toast.LENGTH_SHORT).show();
    }
}
SigPerm.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.PermissionInfo;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class SigPerm {

    public static boolean test(Context ctx, String sigPermName,
                               String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        try {
            // Get the package name of the application which declares a permission
            // named sigPermName.
            PackageManager pm = ctx.getPackageManager();
            PermissionInfo pi =
                pm.getPermissionInfo(sigPermName, PackageManager.GET_META_DATA);
            String pkgname = pi.packageName;
            // Fail if the permission named sigPermName is not a Signature
            // Permission
            if (pi.protectionLevel != PermissionInfo.PROTECTION_SIGNATURE)
                return false;

            // Compare the actual hash value of pkgname with the correct hash
            // value.
            if (Build.VERSION.SDK_INT >= 28) {
                // ** if API Level >= 28, direct check is possible
                return pm.hasSigningCertificate(pkgname,
                                                Utils.hex2Bytes(correctHash),
                                                CERT_INPUT_SHA256);
            } else {
                // else(API Level < 28) use the facility of PkgCert
                return correctHash.equals(PkgCert.hash(ctx, pkgname));
            }

        } catch (NameNotFoundException e) {
            return false;
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

*** Point 9 *** When exporting an APK, sign the APK with the same developer key as the sending application.

_images/image35.png

Fig. 4.2.2 Sign the APK with the same developer key as the sending application

Next, the sample code for sending Broadcasts to in-house Broadcast Receiver is shown.

Points (Sending Broadcasts):

  1. Define an in-house signature permission to receive results.
  2. Declare to use the in-house signature permission to receive Broadcasts.
  3. Verify that the in-house signature permission is defined by an in-house application.
  4. Sensitive information can be returned since the requesting application is the in-house one.
  5. Require the in-house signature permission of Receivers.
  6. Handle the received result data carefully and securely.
  7. When exporting an APK, sign the APK with the same developer key as the destination application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.broadcast.inhousesender" >

  <uses-permission android:name="android.permission.BROADCAST_STICKY"/>

  <!-- *** POINT 10 *** Define an in-house signature permission to receive results. -->
  <permission
      android:name="org.jssec.android.broadcast.inhousesender.MY_PERMISSION"
      android:protectionLevel="signature" />

  <!-- *** POINT 11 *** Declare to use the in-house signature permission to receive Broadcasts. -->
  <uses-permission
      android:name="org.jssec.android.broadcast.inhousereceiver.MY_PERMISSION" />

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >

    <activity
        android:name="org.jssec.android.broadcast.inhousesender.InhouseSenderActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>
  </application>
</manifest>
InhouseSenderActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.broadcast.inhousesender;

import org.jssec.android.shared.SigPerm;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;
import android.widget.Toast;

public class InhouseSenderActivity extends Activity {

    // In-house Signature Permission
    private static final String MY_PERMISSION =
            "org.jssec.android.broadcast.inhousesender.MY_PERMISSION";

    // In-house certificate hash value
    private static String sMyCertHash = null;
    private static String myCertHash(Context context) {
        if (sMyCertHash == null) {
            if (Utils.isDebuggable(context)) {
                // Certificate hash value of "androiddebugkey" in the
                // debug.keystore.
                sMyCertHash = "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255";
            } else {
                // Certificate hash value of "my company key" in the keystore.
                sMyCertHash = "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA";
            }
        }
        return sMyCertHash;
    }

    private static final String MY_BROADCAST_INHOUSE =
        "org.jssec.android.broadcast.MY_BROADCAST_INHOUSE";

    public void onSendNormalClick(View view) {

        // *** POINT 12 *** Verify that the in-house signature permission is
        // defined by an in-house application.
        if (!SigPerm.test(this, MY_PERMISSION, myCertHash(this))) {
            Toast.makeText(this, "The in-house signature permission is not declared by in-house application.", Toast.LENGTH_LONG).show();
            return;
        }

        // *** POINT 13 *** Sensitive information can be returned since the
        // requesting application is in-house.
        Intent intent = new Intent(MY_BROADCAST_INHOUSE);
        intent.putExtra("PARAM", "Sensitive Info from Sender");

        // *** POINT 14 *** Require the in-house signature permission to limit
        // receivers.
        sendBroadcast(intent,
                     "org.jssec.android.broadcast.inhousesender.MY_PERMISSION");
    }

    public void onSendOrderedClick(View view) {

        // *** POINT 12 *** Verify that the in-house signature permission is
        // defined by an in-house application.
        if (!SigPerm.test(this, MY_PERMISSION, myCertHash(this))) {
            Toast.makeText(this, "The in-house signature permission is not declared by in-house application.", Toast.LENGTH_LONG).show();
            return;
        }

        // *** POINT 13 *** Sensitive information can be returned since the
        // requesting application is in-house.
        Intent intent = new Intent(MY_BROADCAST_INHOUSE);
        intent.putExtra("PARAM", "Sensitive Info from Sender");

        // *** POINT 14 *** Require the in-house signature permission to limit
        // receivers.
        sendOrderedBroadcast(intent,
                "org.jssec.android.broadcast.inhousesender.MY_PERMISSION",
                mResultReceiver, null, 0, null, null);
    }

    private BroadcastReceiver mResultReceiver = new BroadcastReceiver() {
            @Override
            public void onReceive(Context context, Intent intent) {

                // *** POINT 15 *** Handle the received result data carefully and
                // securely, even though the data came from an in-house
                // application.
                // Omitted, since this is a sample. Please refer to
                // "3.2 Handling Input Data Carefully and Securely."
                String data = getResultData();
                InhouseSenderActivity.this
                    .logLine(String.format("Received result: \"%s\"", data));
            }
        };

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}
SigPerm.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.PermissionInfo;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class SigPerm {

    public static boolean test(Context ctx, String sigPermName,
                               String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        try {
            // Get the package name of the application which declares a permission
            // named sigPermName.
            PackageManager pm = ctx.getPackageManager();
            PermissionInfo pi =
                pm.getPermissionInfo(sigPermName, PackageManager.GET_META_DATA);
            String pkgname = pi.packageName;
            // Fail if the permission named sigPermName is not a Signature
            // Permission
            if (pi.protectionLevel != PermissionInfo.PROTECTION_SIGNATURE)
                return false;

            // Compare the actual hash value of pkgname with the correct hash
            // value.
            if (Build.VERSION.SDK_INT >= 28) {
                // ** if API Level >= 28, direct check is possible
                return pm.hasSigningCertificate(pkgname,
                                                Utils.hex2Bytes(correctHash),
                                                CERT_INPUT_SHA256);
            } else {
                // else(API Level < 28) use the facility of PkgCert
                return correctHash.equals(PkgCert.hash(ctx, pkgname));
            }

        } catch (NameNotFoundException e) {
            return false;
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

*** Point 16 *** When exporting an APK, sign the APK with the same developer key as the destination application.

_images/image35.png

Fig. 4.2.3 Sign the APK with the same developer key as the destination application

4.2.2. Rule Book

Follow the rules below to Send or receive Broadcasts.

  1. Broadcast Receiver that Is Used Only in an Application Must Be Set as Private (Required)
  2. Handle the Received Intent Carefully and Securely (Required)
  3. Use the In-house Defined Signature Permission after Verifying that it’s Defined by an In-house Application (Required)
  4. When Returning a Result Information, Pay Attention to the Result Information Leakage from the Destination Application (Required)
  5. When Sending Sensitive Information with a Broadcast, Limit the Receivable Receiver (Required)
  6. Sensitive Information Must Not Be Included in the Sticky Broadcast (Required)
  7. Pay Attention that the Ordered Broadcast without Specifying the receiverPermission May Not Be Delivered (Required)
  8. Handle the Returned Result Data from the Broadcast Receiver Carefully and Securely (Required)
  9. When Providing an Asset Secondarily, the Asset should be protected with the Same Protection Level (Required)

4.2.2.1. Broadcast Receiver that Is Used Only in an Application Must Be Set as Private (Required)

Broadcast Receiver which is used only in the application should be set as private to avoid from receiving any Broadcasts from other applications unexpectedly. It will prevent the application function abuse or the abnormal behaviors.

Receiver used only within the same application should not be designed with setting Intent-filter. Because of the Intent-filter characteristics, a public Receiver of other application may be called unexpectedly by calling through Intent-filter even though a private Receiver within the same application is to be called.

AndroidManifest.xml(Not recoomended)
      <!-- Private Broadcast Receiver -->
      <!-- *** 4.2.1.1 - POINT 1 *** Explicitly set the exported attribute to false. -->
      <receiver android:name=".PrivateReceiver"
          android:exported="false" >
          <intent-filter>
              <action android:name="org.jssec.android.broadcast.MY_ACTION" />
          </intent-filter>
       </receiver>

Please refer to “4.2.3.1. Combinations of the exported Attribute and the Intent-filter setting (For Receiver).”

4.2.2.2. Handle the Received Intent Carefully and Securely (Required)

Though risks are different depending on the types of the Broadcast Receiver, firstly verify the safety of Intent when processing received Intent data.

Since Public Broadcast Receiver receives the Intents from unspecified large number of applications, it may receive malware’s attacking Intents. Private Broadcast Receiver will never receive any Intent from other applications directly, but Intent data which a public Component received from other applications may be forwarded to Private Broadcast Receiver. So don’t think that the received Intent is totally safe without any qualification. In-house Broadcast Receivers have some degree of the risks, so it also needs to verify the safety of the received Intents.

Please refer to “3.2. Handling Input Data Carefully and Securely

4.2.2.3. Use the In-house Defined Signature Permission after Verifying that it’s Defined by an In-house Application (Required)

In-house Broadcast Receiver which receives only Broadcasts sent by an In-house application should be protected by in-house-defined Signature Permission. Permission definition/Permission request declarations in AndroidManifest.xml are not enough to protecting, so please refer to “5.2.1.2. How to Communicate Between In-house Applications with In-house-defined Signature Permission.” ending Broadcasts by specifying in-house-defined Signature Permission to receiverPermission parameter requires verification in the same way.

4.2.2.4. When Returning a Result Information, Pay Attention to the Result Information Leakage from the Destination Application (Required)

The Reliability of the application which returns result information by setResult() varies depending on the types of the Broadcast Receiver. In case of Public Broadcast Receiver, the destination application may be malware, and there may be a risk that the result information is used maliciously. In case of Private Broadcast Receiver and In-house Broadcast Receiver, the result destination is In-house developed application, so no need to mind the result information handling.

Need to pay attention to the result information leakage from the destination application when result information is returned from Broadcast Receivers as above.

4.2.2.5. When Sending Sensitive Information with a Broadcast, Limit the Receivable Receiver (Required)

Broadcast is the created system to broadcast information to unspecified large number of applications or notify them of the timing at once. So, broadcasting sensitive information requires the careful designing for preventing the illicit obtainment of the information by malware.

For broadcasting sensitive information, only reliable Broadcast Receiver can receive it, and other Broadcast Receivers cannot. The following are some examples of Broadcast sending methods.

  • The method is to fix the address by Broadcast-sending with an explicit Intent for sending Broadcasts to the intended reliable Broadcast Receivers only. There are 2 patterns in this method.
    • When it’s addressed to a Broadcast Receiver within the same application, specify the address by Intent#setClass(Context, Class). Refer to sample code section “4.2.1.1. Private Broadcast Receiver - Receiving/Sending Broadcasts” for the concrete code.
    • When it’s addressed to a Broadcast Receiver in other applications, specify the address by Intent#setClassName(String, String). Confirm the permitted application by comparing the developer key of the APK signature in the destination package with the white list to send Broadcasts. Actually the following method of using implicit Intents is more practical.
  • The Method is to send Broadcasts by specifying in-house-defined Signature Permission to receiverPermission parameter and make the reliable Broadcast Receiver declare to use this Signature Permission. Refer to the sample code section “4.2.1.3. In-house Broadcast Receiver - Receiving/Sending Broadcasts” for the concrete code. In addition, implementing this Broadcast-sending method needs to apply the rule “4.2.2.3. Use the In-house Defined Signature Permission after Verifying that it’s Defined by an In-house Application (Required).”

4.2.2.6. Sensitive Information Must Not Be Included in the Sticky Broadcast (Required)

Usually, the Broadcasts will be disappeared when they are processed to be received by the available Broadcast Receivers. On the other hand, Sticky Broadcasts (hereafter, Sticky Broadcasts including Sticky Ordered Broadcasts), will not be disappeared from the system even when they processed to be received by the available Broadcast Receivers and will be able to be received by registerReceiver(). When Sticky Broadcast becomes unnecessary, it can be deleted anytime arbitrarily with removeStickyBroadcast().

As it’s presupposed that Sticky Broadcast is used by the implicit Intent. Broadcasts with specified receiverPermission Parameter cannot be sent. For this reason, information sent via Sticky Broadcasts can be accessed by multiple unspecified apps — including malware — and thus sensitive information must not be sent in this way. Note that Sticky Broadcast is deprecated in Android 5.0 (API Level 21).

4.2.2.7. Pay Attention that the Ordered Broadcast without Specifying the receiverPermission May Not Be Delivered (Required)

Ordered Broadcast without specified receiverPermission Parameter can be received by unspecified large number of applications including malware. Ordered Broadcast is used to receive the returned information from Receiver, and to make several Receivers execute processing one by one. Broadcasts are sent to the Receivers in order of priority. So if the high- priority malware receives Broadcast first and executes abortBroadcast(), Broadcasts won’t be delivered to the following Receivers.

4.2.2.8. Handle the Returned Result Data from the Broadcast Receiver Carefully and Securely (Required)

Basically the result data should be processed safely considering the possibility that received results may be the attacking data though the risks vary depending on the types of the Broadcast Receiver which has returned the result data.

When sender (source) Broadcast Receiver is public Broadcast Receiver, it receives the returned data from unspecified large number of applications. So it may also receive malware’s attacking data. When sender (source) Broadcast Receiver is private Broadcast Receiver, it seems no risk. However the data received by other applications may be forwarded as result data indirectly. So the result data should not be considered as safe without any qualification. When sender (source) Broadcast Receiver is In-house Broadcast Receiver, it has some degree of the risks. So it should be processed in a safe way considering the possibility that the result data may be an attacking data.

Please refer to “3.2. Handling Input Data Carefully and Securely

4.2.2.9. When Providing an Asset Secondarily, the Asset should be protected with the Same Protection Level (Required)

When information or function assets protected by Permission are provided to other applications secondarily, it’s necessary to keep the protection standard by claiming the same Permission of the destination application. In the Android Permission security models, privileges are managed only for the direct access to the protected assets from applications. Because of the characteristics, acquired assets may be provided to other applications without claiming Permission which is necessary for protection. This is actually same as re-delegating Permission, as it is called, Permission re-delegation problem. Please refer to “5.2.3.4. Permission Re-delegation Problem.”

4.2.3. Advanced Topics

4.2.3.1. Combinations of the exported Attribute and the Intent-filter setting (For Receiver)

Table 4.2.3 represents the permitted combination of export settings and Intent-filter elements when implementing Receivers. The reason why the usage of “exported=”false” with Intent-filter definition” is principally prohibited, is described below.

Table 4.2.3 Usable or not; Combination of exported attribute and intent-filter elements
  Value of exported attribute
True False Not specified
Intent-filter defined OK (Do not Use) (Do not Use)
Intent Filter Not Defined OK OK (Do not Use)

When the exported attribute of a Receiver is left unspecified, the question of whether or not the Receiver is public is determined by the presence or absence of intent filters for that Receiver [11]. However, in this guidebook it is forbidden to set the exported attribute to “unspecified”. In general, as mentioned previously, it is best to avoid implementations that rely on the default behavior of any given API; moreover, in cases where explicit methods — such as the exported attribute — exist for enabling important security-related settings, it is always a good idea to make use of those methods.

[11]If any intent filters are defined then the Receiver is public; otherwise it is private. For more information, see https://developer.android.com/guide/topics/manifest/receiver-element.html#exported

Public Receivers in other applications may be called unexpectedly even though Broadcasts are sent to the private Receivers within the same applications. This is the reason why specifying exported=”false” with Intent-filter definition is prohibited. The following 2 figures show how the unexpected calls occur.

Fig. 4.2.4 is an example of the normal behaviors which a private Receiver (application A) can be called by implicit Intent only within the same application. Intent-filter (in the figure, action=”X”) is defined only in application A, so this is the expected behavior.

_images/image41.png

Fig. 4.2.4 An Example of Normal Behavior

Fig. 4.2.5 is an example that Intent-filter (see action=”X” in the figure) is defined in the application B as well as in the application A. First of all, when another application (application C) sends Broadcasts by implicit Intent, they are not received by a private Receiver (A-1) side. So there won’t be any security problem. (See the orange arrow marks in the Figure.)

From security point of view, the problem is application A’s call to the private Receiver within the same application. When the application A broadcasts implicit Intent, not only Private Receiver within the same application, but also public Receiver (B-1) with the same Intent-filter definition can also receive the Intent. (Red arrow marks in the Figure). In this case, sensitive information may be sent from the application A to B. When the application B is malware, it will cause the leakage of sensitive information. When the Broadcast is Ordered Broadcast, it may receive the unexpected result information.

_images/image42.png

Fig. 4.2.5 An Example of Abnormal Behavior

However, “exported=”false” with Intent-filter definition” should be used when Broadcast Receiver to receive only Broadcast Intent sent by the system is implemented. Other combination should not be used. This is based on the fact that Broadcast Intent sent by the system can be received by exported=”false”. If other applications send Intent which has same ACTION with Broadcast Intent sent by system, it may cause an unexpected behavior by receiving it. However, this can be prevented by specifying exported=”false”.

4.2.3.2. Receiver Won’t Be Registered before Launching the Application

It is important to note carefully that a Broadcast Receiver defined statically in AndroidManifest.xml will not be automatically enabled upon installation [12]. Apps are able to receive Broadcasts only after they have been launched the first time; thus, it is not possible to use the receipt of a Broadcast after installation as a trigger to initiate operations. However, if the Intent.FLAG_INCLUDE_STOPPED_PACKAGES flag set when sending a Broadcast, that Broadcast will be received even by apps that have not yet been launched for the first time.

[12]In versions prior to Android 3.0, Receivers were registered automatically simply by installing apps.

4.2.3.3. Private Broadcast Receiver Can Receive the Broadcast that Was Sent by the Same UID Application

Same UID can be provided to several applications. Even if it’s private Broadcast Receiver, the Broadcasts sent from the same UID application can be received.

However, it won’t be a security problem. Since it’s guaranteed that applications with the same UID have the consistent developer keys for signing APK. It means that what private Broadcast Receiver receives is only the Broadcast sent from In-house applications.

4.2.3.4. Types and Features of Broadcasts

Regarding Broadcasts, there are 4 types based on the combination of whether it’s Ordered or not, and Sticky or not. Based on Broadcast sending methods, a type of Broadcast to send is determined. Note that Sticky Broadcast is deprecated in Android 5.0 (API Level 21).

Table 4.2.4 Type of Sending Broadcast
Type of Broadcast Method for sending Ordered? Sticky?
Normal Broadcast sendBroadcast() No No
Ordered Broadcast sendOrderedBroadcast() Yes No
Sticky Broadcast sendStickyBroadcast() No Yes
Sticky Ordered Broadcast sendStickyOrderedBroadcast() Yes Yes

The feature of each Broad cast is described.

Table 4.2.5 Feature of Each Broadcast
Type of Broadcast Features for each type of Broadcast
Normal Broadcast Normal Broadcast disappears when it is sent to receivable Broadcast Receiver. Broadcasts are received by several Broadcast Receivers simultaneously. This is a difference from Ordered Broadcast. Broadcasts are allowed to be received by the particular Broadcast Receivers.
Ordered Broadcast Ordered Broadcast is characterized by receiving Broadcasts one by one in order with receivable Broadcast Receivers. The higher-priority Broadcast Receiver receives earlier. Broadcasts will disappear when Broadcasts are delivered to all Broadcast Receivers or a Broadcast Receiver in the process calls abortBroadcast(). Broadcasts are allowed to be received by the Broadcast Receivers which declare the specified Permission. In addition, the result information sent from Broadcast Receiver can be received by the sender with Ordered Broadcasts. The Broadcast of SMS-receiving notice (SMS_RECEIVED) is a representative example of Ordered Broadcast.
Sticky Broadcast Sticky Broadcast does not disappear and remains in the system, and then the application that calls registerReceiver() can receive Sticky Broadcast later. Since Sticky Broadcast is different from other Broadcasts, it will never disappear automatically. So when Sticky Broadcast is not necessary, calling removeStickyBroadcast() explicitly is required to delete Sticky Broadcast. Also, Broadcasts cannot be received by the limited Broadcast Receivers with particular Permission. The Broadcast of changing battery-state notice (ACTION_BATTERY_CHANGED) is the representative example of Sticky Broadcast.
Sticky Ordered Broadcast This is the Broadcast which has both characteristics of Ordered Broadcast and Sticky Broadcast. Same as Sticky Broadcast, it cannot allow only Broadcast Receivers with the particular Permission to receive the Broadcast.

From the Broadcast characteristic behavior point of view, above table is conversely arranged in the following one.

Table 4.2.6 Characteristic behavior of Broadcast
Characteristic behavior of Broadcast Normal Broadcast Ordered Broadcast Sticky Broadcast Sticky Ordered Broadcast
Limit Broadcast Receivers which can receive Broadcast, by Permission OK OK - -
Get the results of process from Broadcast Receiver - OK - OK
Make Broadcast Receivers process Broadcasts in order - OK - OK
Receive Broadcasts later, which have been already sent - - OK OK

4.2.3.5. Broadcasted Information May be Output to the LogCat

Basically sending/receiving Broadcasts is not output to LogCat. However, the error log will be output when lacking Permission causes errors in receiver/sender side. Intent information sent by Broadcast is included in the error log, so after an error occurs it’s necessary to pay attention that Intent information is displayed in LogCat when Broadcast is sent.

Erorr of lacking Permission in sender side

W/ActivityManager(266): Permission Denial: broadcasting Intent {
act=org.jssec.android.broadcastreceiver.creating.action.MY_ACTION }
from org.jssec.android.broadcast.sending (pid=4685, uid=10058) requires
org.jssec.android.permission.MY_PERMISSION due to receiver
org.jssec.android.broadcastreceiver.creating/org.jssec.android.broadcastreceiver.creating.CreatingType3Receiver

Erorr of lacking Permission in receiver side

W/ActivityManager(275): Permission Denial: receiving Intent {
act=org.jssec.android.broadcastreceiver.creating.action.MY_ACTION } to
org.jssec.android.broadcastreceiver.creating requires
org.jssec.android.permission.MY_PERMISSION due to sender
org.jssec.android.broadcast.sending (uid 10158)

4.2.3.6. Items to Keep in Mind When Placing an App Shortcut on the Home Screen

In what follows we discuss a number of items to keep in mind when creating a shortcut button for launching an app from the home screen or for creating URL shortcuts such as bookmarks in web browsers. As an example, we consider the implementation shown below.

Place an app shortcut on the home screen

    Intent targetIntent = new Intent(this, TargetActivity.class);

    // Intent to request shortcut creation
    Intent intent = new Intent("com.android.launcher.action.INSTALL_SHORTCUT");

    // Specify an Intent to be launched when the shortcut is tapped
    intent.putExtra(Intent.EXTRA_SHORTCUT_INTENT, targetIntent);
    Parcelable icon =
        Intent.ShortcutIconResource.fromContext(context, iconResource);
    intent.putExtra(Intent.EXTRA_SHORTCUT_ICON_RESOURCE, icon);
    intent.putExtra(Intent.EXTRA_SHORTCUT_NAME, title);
    intent.putExtra("duplicate", false);

    // Use Broadcast to send the system our request for shortcut creation
    context.sendBroadcast(intent);

In the Broadcast sent by the above code snippet, the receiver is the home-screen app, and it is difficult to identify the package name; one must take care to remember that this is a transmission to a public receiver with an implicit intent. Thus the Broadcast sent by this snippet could be received by any arbitrary app, including malware; for this reason, the inclusion of sensitive information in the Intent may create the risk of a damaging leak of information. It is particularly important to note that, when creating a URL-based shortcut, secret information may be contained in the URL itself.

As countermeasures, it is necessary to follow the points listed in “4.2.1.2. Public Broadcast Receiver - Receiving/Sending Broadcasts” and to ensure that the transmitted Intent does not contain sensitive information.

4.3. Creating/Using Content Providers

Since the interface of ContentResolver and SQLiteDatabase are so much alike, it’s often misunderstood that Content Provider is so closely related to SQLiteDatabase. However, actually Content Provider simply provides the interface of inter-application data sharing, so it’s necessary to pay attention that it does not interfere each data saving format. To save data in Content Provider, SQLiteDatabase can be used, and other saving formats, such as an XML file format, also can be used. Any data saving process is not included in the following sample code, so please add it if needed.

4.3.1. Sample Code

The risks and countermeasures of using Content Provider differ depending on how that Content Provider is being used. In this section, we have classified 5 types of Content Provider based on how the Content Provider is being used. You can find out which type of Content Provider you are supposed to create through the following chart shown below.

Table 4.3.1 Definition of content provider types
Type Definition
Private Content Provider A content provider that cannot be used by another application, and therefore is the safest content provider
Public Content Provider A content provider that is supposed to be used by an unspecified large number of applications
Partner Content Provider A content provider that can be used by specific applications made by a trusted partner company.
In-house Content Provider A content provider that can only be used by other in-house applications
Temporary permit Content Provider A content provider that is basically private content provider but permits specific applications to access the particular URI.
_images/image43.png

Fig. 4.3.1 Flow Figure to decide Content Provider Type

4.3.1.1. Creating/Using Private Content Providers

Private Content Provider is the Content Provider which is used only in the single application, and the safest Content Provider [13].

[13]However, non-public settings for Content Provider are not functional in Android 2.2 (API Level 8) and previous versions.

Sample code of how to implement a private Content Provider is shown below.

Points (Creating a Content Provider):

  1. Explicitly set the exported attribute to false.
  2. Handle the received request data carefully and securely, even though the data comes from the same application.
  3. Sensitive information can be sent since it is sending and receiving all within the same application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.provider.privateprovider">

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >
    <activity
        android:name=".PrivateUserActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>

    <!-- *** POINT 1 *** Explicitly set the exported attribute to false. -->
    <provider
        android:name=".PrivateProvider"
        android:authorities="org.jssec.android.provider.privateprovider"
        android:exported="false" />
  </application>
</manifest>
PrivateProvider.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.privateprovider;

import android.content.ContentProvider;
import android.content.ContentUris;
import android.content.ContentValues;
import android.content.UriMatcher;
import android.database.Cursor;
import android.database.MatrixCursor;
import android.net.Uri;

public class PrivateProvider extends ContentProvider {

    public static final String AUTHORITY =
            "org.jssec.android.provider.privateprovider";
    public static final String CONTENT_TYPE =
            "vnd.android.cursor.dir/vnd.org.jssec.contenttype";
    public static final String CONTENT_ITEM_TYPE =
            "vnd.android.cursor.item/vnd.org.jssec.contenttype";

    // Expose the interface that the Content Provider provides.
    public interface Download {
        public static final String PATH = "downloads";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }
    public interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    // UriMatcher
    private static final int DOWNLOADS_CODE = 1;
    private static final int DOWNLOADS_ID_CODE = 2;
    private static final int ADDRESSES_CODE = 3;
    private static final int ADDRESSES_ID_CODE = 4;
    private static UriMatcher sUriMatcher;
    static {
        sUriMatcher = new UriMatcher(UriMatcher.NO_MATCH);
        sUriMatcher.addURI(AUTHORITY, Download.PATH, DOWNLOADS_CODE);
        sUriMatcher.addURI(AUTHORITY, Download.PATH + "/#", DOWNLOADS_ID_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH, ADDRESSES_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH + "/#", ADDRESSES_ID_CODE);
    }

    // Since this is a sample program, query method returns the following
    // fixed result always without using database.
    private static MatrixCursor sAddressCursor =
            new MatrixCursor(new String[] { "_id", "city" });
    static {
        sAddressCursor.addRow(new String[] { "1", "New York" });
        sAddressCursor.addRow(new String[] { "2", "Longon" });
        sAddressCursor.addRow(new String[] { "3", "Paris" });
    }
    private static MatrixCursor sDownloadCursor =
            new MatrixCursor(new String[] { "_id", "path" });
    static {
        sDownloadCursor.addRow(new String[] { "1", "/sdcard/downloads/sample.jpg" });
        sDownloadCursor.addRow(new String[] { "2", "/sdcard/downloads/sample.txt" });
    }

    @Override
    public boolean onCreate() {
        return true;
    }

    @Override
    public String getType(Uri uri) {
        // *** POINT 2 *** Handle the received request data carefully and securely,
        // even though the data comes from the same application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** Sensitive information can be sent since it is sending
        // and receiving all within the same application.
        // However, the result of getType rarely has the sensitive meaning.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case ADDRESSES_CODE:
            return CONTENT_TYPE;

        case DOWNLOADS_ID_CODE:
        case ADDRESSES_ID_CODE:
            return CONTENT_ITEM_TYPE;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Cursor query(Uri uri, String[] projection, String selection,
            String[] selectionArgs, String sortOrder) {

        // *** POINT 2 *** Handle the received request data carefully and securely,
        // even though the data comes from the same application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** Sensitive information can be sent since it is sending
        // and receiving all within the same application.
        // It depends on application whether the query result has sensitive meaning
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case DOWNLOADS_ID_CODE:
            return sDownloadCursor;

        case ADDRESSES_CODE:
        case ADDRESSES_ID_CODE:
            return sAddressCursor;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Uri insert(Uri uri, ContentValues values) {

        // *** POINT 2 *** Handle the received request data carefully and securely,
        // even though the data comes from the same application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** Sensitive information can be sent since it is sending
        // and receiving all within the same application.
        // It depends on application whether the issued ID has sensitive meaning
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return ContentUris.withAppendedId(Download.CONTENT_URI, 3);

        case ADDRESSES_CODE:
            return ContentUris.withAppendedId(Address.CONTENT_URI, 4);

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int update(Uri uri, ContentValues values, String selection,
            String[] selectionArgs) {

        // *** POINT 2 *** Handle the received request data carefully and securely,
        // even though the data comes from the same application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** Sensitive information can be sent since it is sending
        // and receiving all within the same application.
        // It depends on application whether the number of updated records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
                return 5;       // Return number of updated records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
                return 15;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int delete(Uri uri, String selection, String[] selectionArgs) {

        // *** POINT 2 *** Handle the received request data carefully and securely,
        // even though the data comes from the same application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** Sensitive information can be sent since it is sending
        // and receiving all within the same application.
        // It depends on application whether the number of deleted records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
                return 10;      // Return number of deleted records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
                return 20;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }
}

Next is an example of Activity which uses Private Content Provider.

Points (Using a Content Provider):

  1. Sensitive information can be sent since the destination provider is in the same application.
  2. Handle received result data carefully and securely, even though the data comes from the same application.
PrivateUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.privateprovider;

import android.app.Activity;
import android.database.Cursor;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class PrivateUserActivity extends Activity {

    public void onQueryClick(View view) {

        logLine("[Query]");

        Cursor cursor = null;
        try {
            // *** POINT 4 *** Sensitive information can be sent since the
            // destination provider is in the same application.
            cursor =
                getContentResolver().query(PrivateProvider.Download.CONTENT_URI,
				                          null, null, null, null);

            // *** POINT 5 *** Handle received result data carefully and securely,
            // even though the data comes from the same application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            if (cursor == null) {
                logLine("  null cursor");
            } else {
                boolean moved = cursor.moveToFirst();
                while (moved) {
                    logLine(String.format("  %d, %s", cursor.getInt(0),
                                          cursor.getString(1)));
                    moved = cursor.moveToNext();
                }
            }
        }
        finally {
            if (cursor != null) cursor.close();
        }
    }

    public void onInsertClick(View view) {

        logLine("[Insert]");

        // *** POINT 4 *** Sensitive information can be sent since the
        // destination provider is in the same application.
        Uri uri =
            getContentResolver().insert(PrivateProvider.Download.CONTENT_URI,
                                       null);

        // *** POINT 5 *** Handle received result data carefully and securely,
        // even though the data comes from the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine("  uri:" + uri);
    }

    public void onUpdateClick(View view) {

        logLine("[Update]");

        // *** POINT 4 *** Sensitive information can be sent since the
        // destination provider is in the same application.
        int count =
            getContentResolver().update(PrivateProvider.Download.CONTENT_URI,
                                       null, null, null);

        // *** POINT 5 *** Handle received result data carefully and securely,
        // even though the data comes from the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records updated", count));
    }

    public void onDeleteClick(View view) {

        logLine("[Delete]");

        // *** POINT 4 *** Sensitive information can be sent since the
        // destination provider is in the same application.
        int count =
            getContentResolver().delete(PrivateProvider.Download.CONTENT_URI,
                                       null, null);

        // *** POINT 5 *** Handle received result data carefully and securely,
        // even though the data comes from the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records deleted", count));
    }

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}

4.3.1.2. Creating/Using Public Content Providers

Public Content Provider is the Content Provider which is supposed to be used by unspecified large number of applications. It’s necessary to pay attention that since this doesn’t specify clients, it may be attacked and tampered by Malware. For example, a saved data may be taken by select(), a data may be changed by update(), or a fake data may be inserted/deleted by insert()/delete().

In addition, when using a custom Public Content Provider which is not provided by Android OS, it’s necessary to pay attention that request parameter may be received by Malware which masquerades as the custom Public Content Provider, and also the attack result data may be sent. Contacts and MediaStore provided by Android OS are also Public Content Providers, but Malware cannot masquerades as them.

Sample code to implement a Public Content Provider is shown below.

Points (Creating a Content Provider):

  1. Explicitly set the exported attribute to true.
  2. Handle the received request data carefully and securely.
  3. When returning a result, do not include sensitive information.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.provider.publicprovider">

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- *** POINT 1 *** Explicitly set the exported attribute to true. -->
    <provider
        android:name=".PublicProvider"
        android:authorities="org.jssec.android.provider.publicprovider"
        android:exported="true" />
  </application>
</manifest>
PublicProvider.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.publicprovider;

import android.content.ContentProvider;
import android.content.ContentUris;
import android.content.ContentValues;
import android.content.UriMatcher;
import android.database.Cursor;
import android.database.MatrixCursor;
import android.net.Uri;

public class PublicProvider extends ContentProvider {

    public static final String AUTHORITY =
            "org.jssec.android.provider.publicprovider";
    public static final String CONTENT_TYPE =
            "vnd.android.cursor.dir/vnd.org.jssec.contenttype";
    public static final String CONTENT_ITEM_TYPE =
            "vnd.android.cursor.item/vnd.org.jssec.contenttype";

    // Expose the interface that the Content Provider provides.
    public interface Download {
        public static final String PATH = "downloads";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }
    public interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    // UriMatcher
    private static final int DOWNLOADS_CODE = 1;
    private static final int DOWNLOADS_ID_CODE = 2;
    private static final int ADDRESSES_CODE = 3;
    private static final int ADDRESSES_ID_CODE = 4;
    private static UriMatcher sUriMatcher;
    static {
        sUriMatcher = new UriMatcher(UriMatcher.NO_MATCH);
        sUriMatcher.addURI(AUTHORITY, Download.PATH, DOWNLOADS_CODE);
        sUriMatcher.addURI(AUTHORITY, Download.PATH + "/#", DOWNLOADS_ID_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH, ADDRESSES_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH + "/#", ADDRESSES_ID_CODE);
    }

    // Since this is a sample program,
    // query method returns the following fixed result always without using
    // database.
    private static MatrixCursor sAddressCursor =
            new MatrixCursor(new String[] { "_id", "city" });
    static {
        sAddressCursor.addRow(new String[] { "1", "New York" });
        sAddressCursor.addRow(new String[] { "2", "London" });
        sAddressCursor.addRow(new String[] { "3", "Paris" });
    }
    private static MatrixCursor sDownloadCursor =
            new MatrixCursor(new String[] { "_id", "path" });
    static {
        sDownloadCursor.addRow(new String[] { "1", "/sdcard/downloads/sample.jpg" });
        sDownloadCursor.addRow(new String[] { "2", "/sdcard/downloads/sample.txt" });
    }

    @Override
    public boolean onCreate() {
        return true;
    }

    @Override
    public String getType(Uri uri) {

        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case ADDRESSES_CODE:
            return CONTENT_TYPE;

        case DOWNLOADS_ID_CODE:
        case ADDRESSES_ID_CODE:
            return CONTENT_ITEM_TYPE;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Cursor query(Uri uri, String[] projection, String selection,
                        String[] selectionArgs, String sortOrder) {

        // *** POINT 2 *** Handle the received request data carefully and securely.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** When returning a result, do not include sensitive
        // information.
        // It depends on application whether the query result has sensitive
        // meaning or not.
        // If no problem when the information is taken by malware, it can be
        // returned as result.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case DOWNLOADS_ID_CODE:
            return sDownloadCursor;

        case ADDRESSES_CODE:
        case ADDRESSES_ID_CODE:
            return sAddressCursor;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Uri insert(Uri uri, ContentValues values) {

        // *** POINT 2 *** Handle the received request data carefully and securely.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** When returning a result, do not include sensitive
        // information.
        // It depends on application whether the issued ID has sensitive
        // meaning or not.
        // If no problem when the information is taken by malware, it can be
        // returned as result.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return ContentUris.withAppendedId(Download.CONTENT_URI, 3);

        case ADDRESSES_CODE:
            return ContentUris.withAppendedId(Address.CONTENT_URI, 4);

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int update(Uri uri, ContentValues values, String selection,
                      String[] selectionArgs) {

        // *** POINT 2 *** Handle the received request data carefully and securely.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** When returning a result, do not include sensitive
        // information.
        // It depends on application whether the number of updated records has
        // sensitive meaning or not.
        // If no problem when the information is taken by malware, it can be
        // returned as result.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 5;   // Return number of updated records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 15;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int delete(Uri uri, String selection, String[] selectionArgs) {

        // *** POINT 2 *** Handle the received request data carefully and securely.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 3 *** When returning a result, do not include sensitive
        // information.
        // It depends on application whether the number of deleted records has
        // sensitive meaning or not.
        // If no problem when the information is taken by malware, it can be
        // returned as result.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 10;  // Return number of deleted records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 20;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }
}

Next is an example of Activity which uses Public Content Provider.

Points (Using a Content Provider):

  1. Do not send sensitive information.
  2. When receiving a result, handle the result data carefully and securely.
PublicUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.publicuser;

import android.app.Activity;
import android.content.ContentValues;
import android.content.pm.ProviderInfo;
import android.database.Cursor;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class PublicUserActivity extends Activity {

    // Target Content Provider Information
    private static final String AUTHORITY =
            "org.jssec.android.provider.publicprovider";
    private interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    public void onQueryClick(View view) {

        logLine("[Query]");

        if (!providerExists(Address.CONTENT_URI)) {
            logLine("  Content Provider doesn't exist.");
            return;
        }

        Cursor cursor = null;
        try {
            // *** POINT 4 *** Do not send sensitive information.
            // since the target Content Provider may be malware.
            // If no problem when the information is taken by malware,
            // it can be included in the request.
            cursor = getContentResolver().query(Address.CONTENT_URI,
                                               null, null, null, null);

            // *** POINT 5 *** When receiving a result, handle the result data
            // carefully and securely.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            if (cursor == null) {
                logLine("  null cursor");
            } else {
                boolean moved = cursor.moveToFirst();
                while (moved) {
                    logLine(String.format("  %d, %s", cursor.getInt(0),
                                          cursor.getString(1)));
                    moved = cursor.moveToNext();
                }
            }
        }
        finally {
            if (cursor != null) cursor.close();
        }
    }

    public void onInsertClick(View view) {

        logLine("[Insert]");

        if (!providerExists(Address.CONTENT_URI)) {
            logLine("  Content Provider doesn't exist.");
            return;
        }

        // *** POINT 4 *** Do not send sensitive information.
        // since the target Content Provider may be malware.
        // If no problem when the information is taken by malware,
        // it can be included in the request.
        ContentValues values = new ContentValues();
        values.put("city", "Tokyo");
        Uri uri = getContentResolver().insert(Address.CONTENT_URI, values);

        // *** POINT 5 *** When receiving a result, handle the result data
        // carefully and securely.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine("  uri:" + uri);
    }

    public void onUpdateClick(View view) {

        logLine("[Update]");

        if (!providerExists(Address.CONTENT_URI)) {
            logLine("  Content Provider doesn't exist.");
            return;
        }

        // *** POINT 4 *** Do not send sensitive information.
        // since the target Content Provider may be malware.
        // If no problem when the information is taken by malware,
        // it can be included in the request.
        ContentValues values = new ContentValues();
        values.put("city", "Tokyo");
        String where = "_id = ?";
        String[] args = { "4" };
        int count =
            getContentResolver().update(Address.CONTENT_URI, values, where, args);

        // *** POINT 5 *** When receiving a result, handle the result data
        // carefully and securely.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records updated", count));
    }

    public void onDeleteClick(View view) {

        logLine("[Delete]");

        if (!providerExists(Address.CONTENT_URI)) {
            logLine("  Content Provider doesn't exist.");
            return;
        }

        // *** POINT 4 *** Do not send sensitive information.
        // since the target Content Provider may be malware.
        // If no problem when the information is taken by malware,
        // it can be included in the request.
        int count = getContentResolver().delete(Address.CONTENT_URI, null, null);

        // *** POINT 5 *** When receiving a result, handle the result data
        // carefully and securely.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records deleted", count));
    }

    private boolean providerExists(Uri uri) {
        ProviderInfo pi =
            getPackageManager().resolveContentProvider(uri.getAuthority(), 0);
        return (pi != null);
    }

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}

4.3.1.3. Creating/Using Partner Content Providers

Partner Content Provider is the Content Provider which can be used only by the particular applications. The system consists of a partner company’s application and In-house application, and it is used to protect the information and features which are handled between a partner application and an In-house application.

Sample code to implement a partner-only Content Provider is shown below.

Points (Creating a Content Provider):

  1. Explicitly set the exported attribute to true.
  2. Verify if the certificate of a requesting application has been registered in the own white list.
  3. Handle the received request data carefully and securely, even though the data comes from a partner application.
  4. Information that is granted to disclose to partner applications can be returned.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.provider.partnerprovider">

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- *** POINT 1 *** Explicitly set the exported attribute to true. -->
    <provider
        android:name=".PartnerProvider"
        android:authorities="org.jssec.android.provider.partnerprovider"
        android:exported="true" />
  </application>
</manifest>
PartnerProvider.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.partnerprovider;

import java.util.List;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.ActivityManager;
import android.app.ActivityManager.RunningAppProcessInfo;
import android.content.ContentProvider;
import android.content.ContentUris;
import android.content.ContentValues;
import android.content.Context;
import android.content.UriMatcher;
import android.database.Cursor;
import android.database.MatrixCursor;
import android.net.Uri;
import android.os.Binder;
import android.os.Build;

public class PartnerProvider extends ContentProvider {

    public static final String AUTHORITY =
            "org.jssec.android.provider.partnerprovider";
    public static final String CONTENT_TYPE =
            "vnd.android.cursor.dir/vnd.org.jssec.contenttype";
    public static final String CONTENT_ITEM_TYPE =
            "vnd.android.cursor.item/vnd.org.jssec.contenttype";

    // Expose the interface that the Content Provider provides.
    public interface Download {
        public static final String PATH = "downloads";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }
    public interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    // UriMatcher
    private static final int DOWNLOADS_CODE = 1;
    private static final int DOWNLOADS_ID_CODE = 2;
    private static final int ADDRESSES_CODE = 3;
    private static final int ADDRESSES_ID_CODE = 4;
    private static UriMatcher sUriMatcher;
    static {
        sUriMatcher = new UriMatcher(UriMatcher.NO_MATCH);
        sUriMatcher.addURI(AUTHORITY, Download.PATH, DOWNLOADS_CODE);
        sUriMatcher.addURI(AUTHORITY, Download.PATH + "/#", DOWNLOADS_ID_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH, ADDRESSES_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH + "/#", ADDRESSES_ID_CODE);
    }

    // Since this is a sample program,
    // query method returns the following fixed result always without using
    // database.
    private static MatrixCursor sAddressCursor =
            new MatrixCursor(new String[] { "_id", "city" });
    static {
        sAddressCursor.addRow(new String[] { "1", "New York" });
        sAddressCursor.addRow(new String[] { "2", "London" });
        sAddressCursor.addRow(new String[] { "3", "Paris" });
    }
    private static MatrixCursor sDownloadCursor =
            new MatrixCursor(new String[] { "_id", "path" });
    static {
        sDownloadCursor.addRow(new String[] { "1", "/sdcard/downloads/sample.jpg" });
        sDownloadCursor.addRow(new String[] { "2", "/sdcard/downloads/sample.txt" });
    }

    // *** POINT 2 *** Verify if the certificate of a requesting application has
    // been registered in the own white list.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register certificate hash value of partner application
        // org.jssec.android.provider.partneruser.
        sWhitelists.add("org.jssec.android.provider.partneruser", isdebug ?
            // Certificate hash value of "androiddebugkey" in the debug.keystore.
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of "partner key" in the keystore.
            "1F039BB5 7861C27A 3916C778 8E78CE00 690B3974 3EB8259F E2627B8D 4C0EC35A");

        // Register following other partner applications in the same way.
    }
    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }
    // Get the package name of the calling application.
    private String getCallingPackage(Context context) {
        String pkgname;
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            pkgname = super.getCallingPackage();
        } else {
            pkgname = null;
            ActivityManager am = (ActivityManager) context.getSystemService(Context.ACTIVITY_SERVICE);
            List<RunningAppProcessInfo> procList = am.getRunningAppProcesses();
            int callingPid = Binder.getCallingPid();
            if (procList != null) {
                for (RunningAppProcessInfo proc : procList) {
                    if (proc.pid == callingPid) {
                        pkgname = proc.pkgList[proc.pkgList.length - 1];
                        break;
                    }
                }
            }
        }
        return pkgname;
    }

    @Override
    public boolean onCreate() {
        return true;
    }

    @Override
    public String getType(Uri uri) {

        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case ADDRESSES_CODE:
            return CONTENT_TYPE;

        case DOWNLOADS_ID_CODE:
        case ADDRESSES_ID_CODE:
            return CONTENT_ITEM_TYPE;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Cursor query(Uri uri, String[] projection, String selection,
                        String[] selectionArgs, String sortOrder) {

        // *** POINT 2 *** Verify if the certificate of a requesting application
        // has been registered in the own white list.
        if (!checkPartner(getContext(), getCallingPackage(getContext()))) {
            throw new SecurityException("Calling application is not a partner application.");
        }

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from a partner application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to partner
        // applications can be returned.
        // It depends on application whether the query result can be disclosed
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case DOWNLOADS_ID_CODE:
            return sDownloadCursor;

        case ADDRESSES_CODE:
        case ADDRESSES_ID_CODE:
            return sAddressCursor;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Uri insert(Uri uri, ContentValues values) {

        // *** POINT 2 *** Verify if the certificate of a requesting application
        // has been registered in the own white list.
        if (!checkPartner(getContext(), getCallingPackage(getContext()))) {
            throw new SecurityException("Calling application is not a partner application.");
        }

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from a partner application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to partner
        // applications can be returned.
        // It depends on application whether the issued ID has sensitive meaning
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return ContentUris.withAppendedId(Download.CONTENT_URI, 3);

        case ADDRESSES_CODE:
            return ContentUris.withAppendedId(Address.CONTENT_URI, 4);

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int update(Uri uri, ContentValues values, String selection,
                      String[] selectionArgs) {

        // *** POINT 2 *** Verify if the certificate of a requesting application
        // has been registered in the own white list.
        if (!checkPartner(getContext(), getCallingPackage(getContext()))) {
            throw new SecurityException("Calling application is not a partner application.");
        }

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from a partner application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to partner
        // applications can be returned.
        // It depends on application whether the number of updated records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 5;   // Return number of updated records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 15;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int delete(Uri uri, String selection, String[] selectionArgs) {

        // *** POINT 2 *** Verify if the certificate of a requesting application
        // has been registered in the own white list.
        if (!checkPartner(getContext(), getCallingPackage(getContext()))) {
            throw new SecurityException("Calling application is not a partner application.");
        }

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from a partner application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to partner
        // applications can be returned.
        // It depends on application whether the number of deleted records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 10;  // Return number of deleted records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 20;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }
}

Next is an example of Activity which use partner only Content Provider.

Points (Using a Content Provider):

  1. Verify if the certificate of the target application has been registered in the own white list.
  2. Information that is granted to disclose to partner applications can be sent.
  3. Handle the received result data carefully and securely, even though the data comes from a partner application.
PartnerUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.partneruser;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.ContentValues;
import android.content.Context;
import android.content.pm.ProviderInfo;
import android.database.Cursor;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class PartnerUserActivity extends Activity {

    // Target Content Provider Information
    private static final String AUTHORITY =
            "org.jssec.android.provider.partnerprovider";
    private interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    // *** POINT 4 *** Verify if the certificate of the target application has
    // been registered in the own white list.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register certificate hash value of partner application
        // org.jssec.android.provider.partnerprovider.
        sWhitelists.add("org.jssec.android.provider.partnerprovider", isdebug ?
            // Certificate hash value of "androiddebugkey" in the debug.keystore.
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of "partner key" in the keystore.
            "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA");

        // Register following other partner applications in the same way.
    }

    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    // Get package name of target content provider.
    private String providerPkgname(Uri uri) {
        String pkgname = null;
        ProviderInfo pi =
            getPackageManager().resolveContentProvider(uri.getAuthority(), 0);
        if (pi != null) pkgname = pi.packageName;
        return pkgname;
    }

    public void onQueryClick(View view) {

        logLine("[Query]");

        // *** POINT 4 *** Verify if the certificate of the target application has
        // been registered in the own white list.
        if (!checkPartner(this, providerPkgname(Address.CONTENT_URI))) {
            logLine("  The target content provider is not served by partner applications.");
            return;
        }

        Cursor cursor = null;
        try {
            // *** POINT 5 *** Information that is granted to disclose to partner
            // applications can be sent.
            cursor = getContentResolver().query(Address.CONTENT_URI,
                                                null, null, null, null);

            // *** POINT 6 *** Handle the received result data carefully and
            // securely, even though the data comes from a partner application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            if (cursor == null) {
                logLine("  null cursor");
            } else {
                boolean moved = cursor.moveToFirst();
                while (moved) {
                    logLine(String.format("  %d, %s", cursor.getInt(0),
                                          cursor.getString(1)));
                    moved = cursor.moveToNext();
                }
            }
        }
        finally {
            if (cursor != null) cursor.close();
        }
    }

    public void onInsertClick(View view) {

        logLine("[Insert]");

        // *** POINT 4 *** Verify if the certificate of the target application has
        // been registered in the own white list.
        if (!checkPartner(this, providerPkgname(Address.CONTENT_URI))) {
            logLine("  The target content provider is not served by partner applications.");
            return;
        }

        // *** POINT 5 *** Information that is granted to disclose to partner
        // applications can be sent.
        ContentValues values = new ContentValues();
        values.put("city", "Tokyo");
        Uri uri = getContentResolver().insert(Address.CONTENT_URI, values);

        // *** POINT 6 *** Handle the received result data carefully and securely,
        // even though the data comes from a partner application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine("  uri:" + uri);
    }

    public void onUpdateClick(View view) {

        logLine("[Update]");

        // *** POINT 4 *** Verify if the certificate of the target application has
        // been registered in the own white list.
        if (!checkPartner(this, providerPkgname(Address.CONTENT_URI))) {
            logLine("  The target content provider is not served by partner applications.");
            return;
        }

        // *** POINT 5 *** Information that is granted to disclose to partner
        // applications can be sent.
        ContentValues values = new ContentValues();
        values.put("city", "Tokyo");
        String where = "_id = ?";
        String[] args = { "4" };
        int count =
            getContentResolver().update(Address.CONTENT_URI, values, where, args);

        // *** POINT 6 *** Handle the received result data carefully and securely,
        // even though the data comes from a partner application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records updated", count));
    }

    public void onDeleteClick(View view) {

        logLine("[Delete]");

        // *** POINT 4 *** Verify if the certificate of the target application has
        // been registered in the own white list.
        if (!checkPartner(this, providerPkgname(Address.CONTENT_URI))) {
            logLine("  The target content provider is not served by partner applications.");
            return;
        }

        // *** POINT 5 *** Information that is granted to disclose to partner
        // applications can be sent.
        int count = getContentResolver().delete(Address.CONTENT_URI, null, null);

        // *** POINT 6 *** Handle the received result data carefully and securely,
        // even though the data comes from a partner application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records deleted", count));
    }

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

4.3.1.4. Creating/Using In-house Content Providers

In-house Content Provider is the Content Provider which prohibits to be used by applications other than In house only applications.

Sample code of how to implement an In house only Content Provider is shown below.

Points (Creating a Content Provider):

  1. Define an in-house signature permission.
  2. Require the in-house signature permission.
  3. Explicitly set the exported attribute to true.
  4. Verify if the in-house signature permission is defined by an in-house application.
  5. Verify the safety of the parameter even if it’s a request from In house only application.
  6. Sensitive information can be returned since the requesting application is in-house.
  7. When exporting an APK, sign the APK with the same developer key as that of the requesting application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.provider.inhouseprovider">

  <!-- *** POINT 1 *** Define an in-house signature permission -->
  <permission
      android:name="org.jssec.android.provider.inhouseprovider.MY_PERMISSION"
      android:protectionLevel="signature" />

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <!-- *** POINT 2 *** Require the in-house signature permission -->
    <!-- *** POINT 3 *** Explicitly set the exported attribute to true. -->
    <provider
        android:name=".InhouseProvider"
        android:authorities="org.jssec.android.provider.inhouseprovider"
        android:permission="org.jssec.android.provider.inhouseprovider.MY_PERMISSION"
        android:exported="true" />
  </application>
</manifest>
InhouseProvider.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.inhouseprovider;

import org.jssec.android.shared.SigPerm;
import org.jssec.android.shared.Utils;

import android.content.ContentProvider;
import android.content.ContentUris;
import android.content.ContentValues;
import android.content.Context;
import android.content.UriMatcher;
import android.database.Cursor;
import android.database.MatrixCursor;
import android.net.Uri;

public class InhouseProvider extends ContentProvider {

    public static final String AUTHORITY =
            "org.jssec.android.provider.inhouseprovider";
    public static final String CONTENT_TYPE =
            "vnd.android.cursor.dir/vnd.org.jssec.contenttype";
    public static final String CONTENT_ITEM_TYPE =
            "vnd.android.cursor.item/vnd.org.jssec.contenttype";

    // Expose the interface that the Content Provider provides.
    public interface Download {
        public static final String PATH = "downloads";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }
    public interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    // UriMatcher
    private static final int DOWNLOADS_CODE = 1;
    private static final int DOWNLOADS_ID_CODE = 2;
    private static final int ADDRESSES_CODE = 3;
    private static final int ADDRESSES_ID_CODE = 4;
    private static UriMatcher sUriMatcher;
    static {
        sUriMatcher = new UriMatcher(UriMatcher.NO_MATCH);
        sUriMatcher.addURI(AUTHORITY, Download.PATH, DOWNLOADS_CODE);
        sUriMatcher.addURI(AUTHORITY, Download.PATH + "/#", DOWNLOADS_ID_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH, ADDRESSES_CODE);
        sUriMatcher.addURI(AUTHORITY, Address.PATH + "/#", ADDRESSES_ID_CODE);
    }

    // Since this is a sample program, query method returns the following
    // fixed result always without using database.
    private static MatrixCursor sAddressCursor =
            new MatrixCursor(new String[] { "_id", "city" });
    static {
        sAddressCursor.addRow(new String[] { "1", "New York" });
        sAddressCursor.addRow(new String[] { "2", "London" });
        sAddressCursor.addRow(new String[] { "3", "Paris" });
    }
    private static MatrixCursor sDownloadCursor =
            new MatrixCursor(new String[] { "_id", "path" });
    static {
        sDownloadCursor.addRow(new String[] { "1", "/sdcard/downloads/sample.jpg" });
        sDownloadCursor.addRow(new String[] { "2", "/sdcard/downloads/sample.txt" });
    }

    // In-house Signature Permission
    private static final String MY_PERMISSION =
            "org.jssec.android.provider.inhouseprovider.MY_PERMISSION";

    // In-house certificate hash value
    private static String sMyCertHash = null;
    private static String myCertHash(Context context) {
        if (sMyCertHash == null) {
            if (Utils.isDebuggable(context)) {
                // Certificate hash value of "androiddebugkey" in the
                // debug.keystore.
                sMyCertHash = "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255";
            } else {
                // Certificate hash value of "my company key" in the keystore.
                sMyCertHash = "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA";
            }
        }
        return sMyCertHash;
    }

    @Override
    public boolean onCreate() {
        return true;
    }

    @Override
    public String getType(Uri uri) {

        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case ADDRESSES_CODE:
            return CONTENT_TYPE;

        case DOWNLOADS_ID_CODE:
        case ADDRESSES_ID_CODE:
            return CONTENT_ITEM_TYPE;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Cursor query(Uri uri, String[] projection, String selection,
                        String[] selectionArgs, String sortOrder) {

        // *** POINT 4 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        if (!SigPerm.test(getContext(), MY_PERMISSION, myCertHash(getContext()))) {
            throw new SecurityException("The in-house signature permission is not declared by in-house application.");
        }

        // *** POINT 5 *** Handle the received request data carefully and securely,
        // even though the data came from an in-house application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 6 *** Sensitive information can be returned since the
        // requesting application is in-house.
        // It depends on application whether the query result has sensitive
        // meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case DOWNLOADS_ID_CODE:
            return sDownloadCursor;

        case ADDRESSES_CODE:
        case ADDRESSES_ID_CODE:
            return sAddressCursor;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Uri insert(Uri uri, ContentValues values) {

        // *** POINT 4 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        if (!SigPerm.test(getContext(), MY_PERMISSION, myCertHash(getContext()))) {
            throw new SecurityException("The in-house signature permission is not declared by in-house application.");
        }

        // *** POINT 5 *** Handle the received request data carefully and securely,
        // even though the data came from an in-house application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 6 *** Sensitive information can be returned since the
        // requesting application is in-house.
        // It depends on application whether the issued ID has sensitive meaning
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return ContentUris.withAppendedId(Download.CONTENT_URI, 3);

        case ADDRESSES_CODE:
            return ContentUris.withAppendedId(Address.CONTENT_URI, 4);

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int update(Uri uri, ContentValues values, String selection,
                      String[] selectionArgs) {

        // *** POINT 4 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        if (!SigPerm.test(getContext(), MY_PERMISSION, myCertHash(getContext()))) {
            throw new SecurityException("The in-house signature permission is not declared by in-house application.");
        }

        // *** POINT 5 *** Handle the received request data carefully and securely,
        // even though the data came from an in-house application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 6 *** Sensitive information can be returned since the
        // requesting application is in-house.
        // It depends on application whether the number of updated records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 5;   // Return number of updated records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 15;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int delete(Uri uri, String selection, String[] selectionArgs) {

        // *** POINT 4 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        if (!SigPerm.test(getContext(), MY_PERMISSION, myCertHash(getContext()))) {
            throw new SecurityException("The in-house signature permission is not declared by in-house application.");
        }

        // *** POINT 5 *** Handle the received request data carefully and securely,
        // even though the data came from an in-house application.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 6 *** Sensitive information can be returned since the
        // requesting application is in-house.
        // It depends on application whether the number of deleted records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 10;  // Return number of deleted records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 20;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }
}
SigPerm.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.PermissionInfo;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class SigPerm {

    public static boolean test(Context ctx, String sigPermName,
                               String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        try {
            // Get the package name of the application which declares a permission
            // named sigPermName.
            PackageManager pm = ctx.getPackageManager();
            PermissionInfo pi =
                pm.getPermissionInfo(sigPermName, PackageManager.GET_META_DATA);
            String pkgname = pi.packageName;
            // Fail if the permission named sigPermName is not a Signature
            // Permission
            if (pi.protectionLevel != PermissionInfo.PROTECTION_SIGNATURE)
                return false;

            // Compare the actual hash value of pkgname with the correct hash
            // value.
            if (Build.VERSION.SDK_INT >= 28) {
                // ** if API Level >= 28, direct check is possible
                return pm.hasSigningCertificate(pkgname,
                                                Utils.hex2Bytes(correctHash),
                                                CERT_INPUT_SHA256);
            } else {
                // else(API Level < 28) use the facility of PkgCert
                return correctHash.equals(PkgCert.hash(ctx, pkgname));
            }

        } catch (NameNotFoundException e) {
            return false;
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

*** Point 7 *** When exporting an APK, sign the APK with the same developer key as the requesting application.

_images/image35.png

Fig. 4.3.2 Sign the APK with the same developer key as the requesting application

Next is the example of Activity which uses In house only Content Provider.

Point (Using a Content Provider):

  1. Declare to use the in-house signature permission.
  2. Verify if the in-house signature permission is defined by an in-house application.0
  3. Verify if the destination application is signed with the in-house certificate.
  4. Sensitive information can be sent since the destination application is in-house one.
  5. Handle the received result data carefully and securely, even though the data comes from an in-house application.
  6. When exporting an APK, sign the APK with the same developer key as that of the destination application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="org.jssec.android.provider.inhouseuser">

    <!-- *** POINT 8 *** Declare to use the in-house signature permission. -->
    <uses-permission
        android:name="org.jssec.android.provider.inhouseprovider.MY_PERMISSION" />

    <application
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name" >
        <activity
            android:name=".InhouseUserActivity"
            android:label="@string/app_name"
            android:exported="true" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>
</manifest>
InhouseUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.inhouseuser;

import org.jssec.android.shared.PkgCert;
import org.jssec.android.shared.SigPerm;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.ContentValues;
import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.ProviderInfo;
import android.database.Cursor;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class InhouseUserActivity extends Activity {

    // Target Content Provider Information
    private static final String AUTHORITY =
            "org.jssec.android.provider.inhouseprovider";
    private interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    // In-house Signature Permission
    private static final String MY_PERMISSION =
            "org.jssec.android.provider.inhouseprovider.MY_PERMISSION";

    // In-house certificate hash value
    private static String sMyCertHash = null;
    private static String myCertHash(Context context) {
        if (sMyCertHash == null) {
            if (Utils.isDebuggable(context)) {
                // Certificate hash value of "androiddebugkey" in the
                // debug.keystore.
                sMyCertHash = "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255";
            } else {
                // Certificate hash value of "my company key" in the keystore.
                sMyCertHash = "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA";
            }
        }
        return sMyCertHash;
    }

    // Get package name of target content provider.
    private static String providerPkgname(Context context, Uri uri) {
        String pkgname = null;
        PackageManager pm = context.getPackageManager();
        ProviderInfo pi = pm.resolveContentProvider(uri.getAuthority(), 0);
        if (pi != null) pkgname = pi.packageName;
        return pkgname;
    }

    public void onQueryClick(View view) {

        logLine("[Query]");

        // *** POINT 9 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        if (!SigPerm.test(this, MY_PERMISSION, myCertHash(this))) {
            logLine("  The in-house signature permission is not declared by in-house application.");
            return;
        }

        // *** POINT 10 *** Verify if the destination application is signed with
        // the in-house certificate.
        String pkgname = providerPkgname(this, Address.CONTENT_URI);
        if (!PkgCert.test(this, pkgname, myCertHash(this))) {
            logLine("  The target content provider is not served by in-house applications.");
            return;
        }

        Cursor cursor = null;
        try {
            // *** POINT 11 *** Sensitive information can be sent since the
            // destination application is in-house one.
            cursor =
                getContentResolver().query(Address.CONTENT_URI,
                                          null, null, null, null);

            // *** POINT 12 *** Handle the received result data carefully and
            // securely, even though the data comes from an in-house application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            if (cursor == null) {
                logLine("  null cursor");
            } else {
                boolean moved = cursor.moveToFirst();
                while (moved) {
                    logLine(String.format("  %d, %s", cursor.getInt(0),
                                          cursor.getString(1)));
                    moved = cursor.moveToNext();
                }
            }
        }
        finally {
            if (cursor != null) cursor.close();
        }
    }

    public void onInsertClick(View view) {

        logLine("[Insert]");

        // *** POINT 9 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        String correctHash = myCertHash(this);
        if (!SigPerm.test(this, MY_PERMISSION, correctHash)) {
            logLine("  The in-house signature permission is not declared by in-house application.");
            return;
        }

        // *** POINT 10 *** Verify if the destination application is signed with
        // the in-house certificate.
        String pkgname = providerPkgname(this, Address.CONTENT_URI);
        if (!PkgCert.test(this, pkgname, correctHash)) {
            logLine("  The target content provider is not served by in-house applications.");
            return;
        }

        // *** POINT 11 *** Sensitive information can be sent since the
        // destination application is in-house one.
        ContentValues values = new ContentValues();
        values.put("city", "Tokyo");
        Uri uri = getContentResolver().insert(Address.CONTENT_URI, values);

        // *** POINT 12 *** Handle the received result data carefully and securely,
        // even though the data comes from an in-house application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine("  uri:" + uri);
    }

    public void onUpdateClick(View view) {

        logLine("[Update]");

        // *** POINT 9 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        String correctHash = myCertHash(this);
        if (!SigPerm.test(this, MY_PERMISSION, correctHash)) {
            logLine("  The in-house signature permission is not declared by in-house application.");
            return;
        }

        // *** POINT 10 *** Verify if the destination application is signed with
        // the in-house certificate.
        String pkgname = providerPkgname(this, Address.CONTENT_URI);
        if (!PkgCert.test(this, pkgname, correctHash)) {
            logLine("  The target content provider is not served by in-house applications.");
            return;
        }

        // *** POINT 11 *** Sensitive information can be sent since the
        // destination application is in-house one.
        ContentValues values = new ContentValues();
        values.put("city", "Tokyo");
        String where = "_id = ?";
        String[] args = { "4" };
        int count =
            getContentResolver().update(Address.CONTENT_URI, values, where, args);

        // *** POINT 12 *** Handle the received result data carefully and securely,
        // even though the data comes from an in-house application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records updated", count));
    }

    public void onDeleteClick(View view) {

        logLine("[Delete]");

        // *** POINT 9 *** Verify if the in-house signature permission is defined
        // by an in-house application.
        String correctHash = myCertHash(this);
        if (!SigPerm.test(this, MY_PERMISSION, correctHash)) {
            logLine("  The target content provider is not served by in-house applications.");
            return;
        }

        // *** POINT 10 *** Verify if the destination application is signed with
        // the in-house certificate.
        String pkgname = providerPkgname(this, Address.CONTENT_URI);
        if (!PkgCert.test(this, pkgname, correctHash)) {
            logLine("  The target content provider is not served by in-house applications.");
            return;
        }

        // *** POINT 11 *** Sensitive information can be sent since the
        // destination application is in-house one.
        int count = getContentResolver().delete(Address.CONTENT_URI, null, null);

        // *** POINT 12 *** Handle the received result data carefully and securely,
        // even though the data comes from an in-house application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        logLine(String.format("  %s records deleted", count));
    }

    private TextView mLogView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}
SigPerm.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.Context;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.PermissionInfo;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class SigPerm {

    public static boolean test(Context ctx, String sigPermName,
                               String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        try {
            // Get the package name of the application which declares a permission
            // named sigPermName.
            PackageManager pm = ctx.getPackageManager();
            PermissionInfo pi =
                pm.getPermissionInfo(sigPermName, PackageManager.GET_META_DATA);
            String pkgname = pi.packageName;
            // Fail if the permission named sigPermName is not a Signature
            // Permission
            if (pi.protectionLevel != PermissionInfo.PROTECTION_SIGNATURE)
                return false;

            // Compare the actual hash value of pkgname with the correct hash
            // value.
            if (Build.VERSION.SDK_INT >= 28) {
                // ** if API Level >= 28, direct check is possible
                return pm.hasSigningCertificate(pkgname,
                                                Utils.hex2Bytes(correctHash),
                                                CERT_INPUT_SHA256);
            } else {
                // else(API Level < 28) use the facility of PkgCert
                return correctHash.equals(PkgCert.hash(ctx, pkgname));
            }

        } catch (NameNotFoundException e) {
            return false;
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

*** Point 13 *** When exporting an APK, sign the APK with the same developer key as that of the destination application.

_images/image35.png

Fig. 4.3.3 Sign the APK with the same developer key as the destination application

4.3.1.5. Creating/Using Temporary permit Content Providers

Temporary permit Content Provider is basically a private Content Provider, but this permits the particular applications to access the particular URI. By sending an Intent which special flag is specified to the target applications, temporary access permission is provided to those applications. Contents provider side application can give the access permission actively to other applications, and it can also give access permission passively to the application which claims the temporary access permission.

Sample code of how to implement a temporary permit Content Provider is shown below.

Points (Creating a Content Provider):

  1. Explicitly set the exported attribute to false.
  2. Specify the path to grant access temporarily with the grant-uri-permission.
  3. Handle the received request data carefully and securely, even though the data comes from the application granted access temporarily.
  4. Information that is granted to disclose to the temporary access applications can be returned.
  5. Specify URI for the intent to grant temporary access.
  6. Specify access rights for the intent to grant temporary access.
  7. Send the explicit intent to an application to grant temporary access.
  8. Return the intent to the application that requests temporary access.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.provider.temporaryprovider">

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name" >

    <activity
        android:name=".TemporaryActiveGrantActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>

    <!-- Temporary Content Provider -->
    <!-- *** POINT 1 *** Explicitly set the exported attribute to false. -->
    <provider
        android:name=".TemporaryProvider"
        android:authorities="org.jssec.android.provider.temporaryprovider"
        android:exported="false" >

      <!-- *** POINT 2 *** Specify the path to grant access temporarily with the grant-uri-permission. -->
      <grant-uri-permission android:path="/addresses" />

    </provider>

    <activity
        android:name=".TemporaryPassiveGrantActivity"
        android:label="@string/app_name"
        android:exported="true" />
  </application>
</manifest>
TemporaryProvider.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.temporaryprovider;

import android.content.ContentProvider;
import android.content.ContentUris;
import android.content.ContentValues;
import android.content.UriMatcher;
import android.database.Cursor;
import android.database.MatrixCursor;
import android.net.Uri;

public class TemporaryProvider extends ContentProvider {
    public static final String AUTHORITIY =
            "org.jssec.android.provider.temporaryprovider";
    public static final String CONTENT_TYPE =
            "vnd.android.cursor.dir/vnd.org.jssec.contenttype";
    public static final String CONTENT_ITEM_TYPE =
            "vnd.android.cursor.item/vnd.org.jssec.contenttype";

    // Expose the interface that the Content Provider provides.
    public interface Download {
        public static final String PATH = "downloads";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITIY + "/" + PATH);
    }
    public interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITIY + "/" + PATH);
    }

    // UriMatcher
    private static final int DOWNLOADS_CODE = 1;
    private static final int DOWNLOADS_ID_CODE = 2;
    private static final int ADDRESSES_CODE = 3;
    private static final int ADDRESSES_ID_CODE = 4;
    private static UriMatcher sUriMatcher;
    static {
        sUriMatcher = new UriMatcher(UriMatcher.NO_MATCH);
        sUriMatcher.addURI(AUTHORITIY, Download.PATH, DOWNLOADS_CODE);
        sUriMatcher.addURI(AUTHORITIY, Download.PATH + "/#", DOWNLOADS_ID_CODE);
        sUriMatcher.addURI(AUTHORITIY, Address.PATH, ADDRESSES_CODE);
        sUriMatcher.addURI(AUTHORITIY, Address.PATH + "/#", ADDRESSES_ID_CODE);
    }

    // Since this is a sample program,
    // query method returns the following fixed result always without using
    // database.
    private static MatrixCursor sAddressCursor =
            new MatrixCursor(new String[] { "_id", "city" });
    static {
        sAddressCursor.addRow(new String[] { "1", "New York" });
        sAddressCursor.addRow(new String[] { "2", "London" });
        sAddressCursor.addRow(new String[] { "3", "Paris" });
    }
    private static MatrixCursor sDownloadCursor =
            new MatrixCursor(new String[] { "_id", "path" });
    static {
        sDownloadCursor.addRow(new String[] { "1", "/sdcard/downloads/sample.jpg" });
        sDownloadCursor.addRow(new String[] { "2", "/sdcard/downloads/sample.txt" });
    }

    @Override
    public boolean onCreate() {
        return true;
    }

    @Override
    public String getType(Uri uri) {

        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case ADDRESSES_CODE:
            return CONTENT_TYPE;

        case DOWNLOADS_ID_CODE:
        case ADDRESSES_ID_CODE:
            return CONTENT_ITEM_TYPE;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Cursor query(Uri uri, String[] projection, String selection,
                        String[] selectionArgs, String sortOrder) {

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from the application granted access
        // temporarily.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to the
        // temporary access applications can be returned.
        // It depends on application whether the query result can be disclosed
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
        case DOWNLOADS_ID_CODE:
            return sDownloadCursor;

        case ADDRESSES_CODE:
        case ADDRESSES_ID_CODE:
            return sAddressCursor;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public Uri insert(Uri uri, ContentValues values) {

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from the application granted access
        // temporarily.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to the
        // temporary access applications can be returned.
        // It depends on application whether the issued ID has sensitive meaning
        // or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return ContentUris.withAppendedId(Download.CONTENT_URI, 3);

        case ADDRESSES_CODE:
            return ContentUris.withAppendedId(Address.CONTENT_URI, 4);

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int update(Uri uri, ContentValues values, String selection,
                      String[] selectionArgs) {

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from the application granted access
        // temporarily.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to the
        // temporary access applications can be returned.
        // It depends on application whether the number of updated records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 5;   // Return number of updated records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 15;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }

    @Override
    public int delete(Uri uri, String selection, String[] selectionArgs) {

        // *** POINT 3 *** Handle the received request data carefully and securely,
        // even though the data comes from the application granted access
        // temporarily.
        // Here, whether uri is within expectations or not, is verified by
        // UriMatcher#match() and switch case.
        // Checking for other parameters are omitted here, due to sample.
        // Please refer to "3.2 Handle Input Data Carefully and Securely."

        // *** POINT 4 *** Information that is granted to disclose to the
        // temporary access applications can be returned.
        // It depends on application whether the number of deleted records has
        // sensitive meaning or not.
        switch (sUriMatcher.match(uri)) {
        case DOWNLOADS_CODE:
            return 10;  // Return number of deleted records

        case DOWNLOADS_ID_CODE:
            return 1;

        case ADDRESSES_CODE:
            return 20;

        case ADDRESSES_ID_CODE:
            return 1;

        default:
            throw new IllegalArgumentException("Invalid URI:" + uri);
        }
    }
}
TemporaryActiveGrantActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.temporaryprovider;

import android.app.Activity;
import android.content.ActivityNotFoundException;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

public class TemporaryActiveGrantActivity extends Activity {

    // User Activity Information
    private static final String TARGET_PACKAGE =
            "org.jssec.android.provider.temporaryuser";
    private static final String TARGET_ACTIVITY =
            "org.jssec.android.provider.temporaryuser.TemporaryUserActivity";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.active_grant);
    }

    // In the case that Content Provider application grants access permission to
    // other application actively.
    public void onSendClick(View view) {
        try {
            Intent intent = new Intent();

            // *** POINT 5 *** Specify URI for the intent to grant temporary
            // access.
            intent.setData(TemporaryProvider.Address.CONTENT_URI);

            // *** POINT 6 *** Specify access rights for the intent to grant
            // temporary access.
            intent.setFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);

            // *** POINT 7 *** Send the explicit intent to an application to grant
            // temporary access.
            intent.setClassName(TARGET_PACKAGE, TARGET_ACTIVITY);
            startActivity(intent);

        } catch (ActivityNotFoundException e) {
            Toast.makeText(this,
                           "User Activity not found.", Toast.LENGTH_LONG).show();
        }
    }
}
TemporaryPassiveGrantActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.temporaryprovider;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;

public class TemporaryPassiveGrantActivity extends Activity {
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.passive_grant);
    }

    // In the case that Content Provider application passively grants access
    // permission to the application that requested Content Provider access.
    public void onGrantClick(View view) {
        Intent intent = new Intent();

        // *** POINT 5 *** Specify URI for the intent to grant temporary access.
        intent.setData(TemporaryProvider.Address.CONTENT_URI);

        // *** POINT 6 *** Specify access rights for the intent to grant temporary
        // access.
        intent.setFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);

        // *** POINT 8 *** Return the intent to the application that requests
        // temporary access.
        setResult(Activity.RESULT_OK, intent);
        finish();
    }

    public void onCloseClick(View view) {
        finish();
    }
}

Next is the example of temporary permit Content Provider.

Points (Using a Content Provider):

  1. Do not send sensitive information.
  2. When receiving a result, handle the result data carefully and securely.
TemporaryUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.provider.temporaryuser;

import android.app.Activity;
import android.content.ActivityNotFoundException;
import android.content.Intent;
import android.content.pm.ProviderInfo;
import android.database.Cursor;
import android.net.Uri;
import android.os.Bundle;
import android.view.View;
import android.widget.TextView;

public class TemporaryUserActivity extends Activity {

    // Information of the Content Provider's Activity to request temporary content
    // provider access.
    private static final String TARGET_PACKAGE =
        "org.jssec.android.provider.temporaryprovider";
    private static final String TARGET_ACTIVITY =
        "org.jssec.android.provider.temporaryprovider.TemporaryPassiveGrantActivity";

    // Target Content Provider Information
    private static final String AUTHORITY =
        "org.jssec.android.provider.temporaryprovider";
    private interface Address {
        public static final String PATH = "addresses";
        public static final Uri CONTENT_URI =
                Uri.parse("content://" + AUTHORITY + "/" + PATH);
    }

    private static final int REQUEST_CODE = 1;

    public void onQueryClick(View view) {

        logLine("[Query]");

        Cursor cursor = null;
        try {
            if (!providerExists(Address.CONTENT_URI)) {
                logLine("  Content Provider doesn't exist.");
                return;
            }

            // *** POINT 9 *** Do not send sensitive information.
            // If no problem when the information is taken by malware, it can be
            // included in the request.
            cursor = getContentResolver().query(Address.CONTENT_URI,
                                               null, null, null, null);

            // *** POINT 10 *** When receiving a result, handle the result data
            // carefully and securely.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            if (cursor == null) {
                logLine("  null cursor");
            } else {
                boolean moved = cursor.moveToFirst();
                while (moved) {
                    logLine(String.format("  %d, %s", cursor.getInt(0),
                                          cursor.getString(1)));
                    moved = cursor.moveToNext();
                }
            }
        } catch (SecurityException ex) {
            logLine("  Exception:" + ex.getMessage());
        }
        finally {
            if (cursor != null) cursor.close();
        }
    }

    // In the case that this application requests temporary access to the Content
    // Provider and the Content Provider passively grants temporary access
    // permission to this application.
    public void onGrantRequestClick(View view) {
        Intent intent = new Intent();
        intent.setClassName(TARGET_PACKAGE, TARGET_ACTIVITY);
        try {
            startActivityForResult(intent, REQUEST_CODE);
        } catch (ActivityNotFoundException e) {
            logLine("Content Provider's Activity not found.");
        }
    }

    private boolean providerExists(Uri uri) {
        ProviderInfo pi =
            getPackageManager().resolveContentProvider(uri.getAuthority(), 0);
        return (pi != null);
    }

    private TextView mLogView;

    // In the case that the Content Provider application grants temporary access
    // to this application actively.
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mLogView = (TextView)findViewById(R.id.logview);
    }

    private void logLine(String line) {
        mLogView.append(line);
        mLogView.append("\n");
    }
}

4.3.2. Rule Book

Be sure to follow the rules below when Implementing or using a content provider.

  1. Content Provider that Is Used Only in an Application Must Be Set as Private (Required)
  2. Handle the Received Request Parameter Carefully and Securely (Required)
  3. Use an In-house Defined Signature Permission after Verifying that it is Defined by an In-house Application (Required)
  4. When Returning a Result, Pay Attention to the Possibility of Information Leakage of that Result from the Destination Application (Required)
  5. When Providing an Asset Secondarily, the Asset should be Protected with the Same Level of Protection (Required)

And user side should follow the below rules, too.

  1. Handle the Returned Result Data from the Content Provider Carefully and Securely (Required)

4.3.2.1. Content Provider that Is Used Only in an Application Must Be Set as Private (Required)

Content Provider which is used only in a single application is not necessary to be accessed by other applications, and the access which attacks the Content Provider is not often considered by developers. A Content Provider is basically the system to share data, so it’s handled as public by default. A Content Provider which is used only in a single application should be set as private explicitly, and it should be a private Content Provider. In Android 2.3.1 (API Level 9) or later, a Content Provider can be set as private by specifying android:exported=”false” in provider element.

AndroidManifest.xml
    <!-- 4.3.1.1 - *** POINT 1 *** Explicitly set the exported attribute to false. -->
    <provider
        android:name=".PrivateProvider"
        android:authorities="org.jssec.android.provider.privateprovider"
        android:exported="false" />

4.3.2.2. Handle the Received Request Parameter Carefully and Securely (Required)

Risks differ depending on the types of Content Providers, but when processing request parameters, the first thing you should do is input validation.

Although each method of a Content Provider has the interface which is supposed to receive the component parameter of SQL statement, actually it simply hands over the arbitrary character string in the system, so it’s necessary to pay attention that Contents Provider side needs to suppose the case that unexpected parameter may be provided.

Since Public Content Providers can receive requests from untrusted sources, they can be attacked by malware. On the other hand, Private Content Providers will never receive any requests from other applications directly, but it is possible that a Public Activity in the targeted application may forward a malicious Intent to a Private Content Provider so you should not assume that Private Content Providers cannot receive any malicious input.

Since other Content Providers also have the risk of a malicious intent being forwarded to them as well, it is necessary to perform input validation on these requests as well.

Please refer to “3.2. Handling Input Data Carefully and Securely”.

4.3.2.3. Use an In-house Defined Signature Permission after Verifying that it is Defined by an In-house Application (Required)

Make sure to protect your in-house Content Providers by defining an in-house signature permission when creating the Content Provider. Since defining a permission in the AndroidManifest.xml file or declaring a permission request does not provide adequate security, please be sure to refer to “5.2.1.2. How to Communicate Between In-house Applications with In-house-defined Signature Permission.”

4.3.2.4. When Returning a Result, Pay Attention to the Possibility of Information Leakage of that Result from the Destination Application (Required)

In case of query() or insert(), Cursor or Uri is returned to the request sending application as a result information. When sensitive information is included in the result information, the information may be leaked from the destination application. In case of update() or delete(), number of updated/deleted records is returned to the request sending application as a result information. In rare cases, depending on some application specs, the number of updated/deleted records has the sensitive meaning, so please pay attention to this.

4.3.2.5. When Providing an Asset Secondarily, the Asset should be Protected with the Same Level of Protection (Required)

When an information or function asset, which is protected by a permission, is provided to another application secondhand, you need to make sure that it has the same required permissions needed to access the asset. In the Android OS permission security model, only an application that has been granted proper permissions can directly access a protected asset. However, there is a loophole because an application with permissions to an asset can act as a proxy and allow access to an unprivileged application. Substantially this is the same as re-delegating a permission, so it is referred to as the “Permission Re-delegation” problem. Please refer to “5.2.3.4. Permission Re-delegation Problem.”

4.3.2.6. Handle the Returned Result Data from the Content Provider Carefully and Securely (Required)

Risks differ depending on the types of Content Provider, but when processing a result data, the first thing you should do is input validation.

In case that the destination Content Provider is a public Content Provider, Malware which masquerades as the public Content Provider may return the attack result data. On the other hand, in case that the destination Content Provider is a private Content Provider, it is less risk because it receives the result data from the same application, but you should not assume that private Content Providers cannot receive any malicious input. Since other Content Providers also have the risk of a malicious data being returned to them as well, it is necessary to perform input validation on that result data as well.

Please refer to “3.2. Handling Input Data Carefully and Securely

4.4. Creating/Using Services

4.4.1. Sample Code

The risks and countermeasures of using Services differ depending on how that Service is being used. You can find out which type of Service you are supposed to create through the following chart shown below. Since the secure coding best practice varies according to how the service is created, we will also explain about the implementation of the Service as well.

Table 4.4.1 Definition of service types
Type Definition
Private Service A service that cannot be used another application, and therefore is the safest service.
Public Service A service that is supposed to be used by an unspecified large number of applications
Partner Service A service that can only be used by the specific applications made by a trusted partner company.
In-house Service A service that can only be used by other in-house applications.
_images/image44.png

Fig. 4.4.1 Flow Figure to select Service Type

There are several implementation methods for Service, and you will select the method which matches with the type of Service that you suppose to create. The items of vertical columns in the table show the implementation methods, and these are divided into 5 types. “OK” stands for the possible combination and others show impossible/difficult combinations in the table.

Please refer to “4.4.3.2. How to Implement Service” and Sample code of each Service type (with * mark in a table) for detailed implementation methods of Service.

Table 4.4.2 Implementation Methods of Service
Category Private Service Public Service Partner Service In-house Service
startService type OK* OK - OK
IntentService type OK OK* - OK
local bind type OK - - -
Messenger bind type OK OK - OK*
AIDL bind type OK OK OK* OK

Sample code for each security type of Service are shown as below, by using combination of * mark in Table 4.4.2.

4.4.1.1. Creating/Using Private Services

Private Services are Services which cannot be launched by the other applications and therefore it is the safest Service.

When using Private Services that are only used within the application, as long as you use explicit Intents to the class then you do not have to worry about accidently sending it to any other application.

Sample code of how to use the startService type Service is shown below.

Points (Creating a Service):

  1. Explicitly set the exported attribute to false.
  2. Handle the received intent carefully and securely, even though the intent was sent from the same application.
  3. Sensitive information can be sent since the requesting application is in the same application.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.service.privateservice" >

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >
    <activity
        android:name=".PrivateUserActivity"
        android:label="@string/app_name"
        android:exported="true" >
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>

    <!-- Private Service derived from Service class -->
    <!-- *** POINT 1 *** Explicitly set the exported attribute to false. -->
    <service android:name=".PrivateStartService" android:exported="false"/>

    <!-- Private Service derived from IntentService class -->
    <!-- *** POINT 1 *** Explicitly set the exported attribute to false. -->
    <service android:name=".PrivateIntentService" android:exported="false"/>

  </application>

</manifest>
PrivateStartService.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.service.privateservice;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.widget.Toast;

public class PrivateStartService extends Service {

    // The onCreate gets called only one time when the service starts.
    @Override
    public void onCreate() {
        Toast.makeText(this, "PrivateStartService - onCreate()",
                       Toast.LENGTH_SHORT).show();
    }

    // The onStartCommand gets called each time after the startService gets called.
    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        // *** POINT 2 *** Handle the received intent carefully and securely,
        // even though the intent was sent from the same application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = intent.getStringExtra("PARAM");
        Toast.makeText(this,
                       String.format("PrivateStartService\nReceived param: \"%s\"",
                                     param),
                       Toast.LENGTH_LONG).show();

        return Service.START_NOT_STICKY;
    }

    // The onDestroy gets called only one time when the service stops.
    @Override
    public void onDestroy() {
        Toast.makeText(this,
                       "PrivateStartService - onDestroy()",
                        Toast.LENGTH_SHORT).show();
    }

    @Override
    public IBinder onBind(Intent intent) {
        // This service does not provide binding, so return null
        return null;
    }
}

Next is sample code for Activity which uses Private Service.

Points (Using a Service):

  1. Use the explicit intent with class specified to call a service in the same application.
  2. Sensitive information can be sent since the destination service is in the same application.
  3. Handle the received result data carefully and securely, even though the data came from a service in the same application.
PrivateUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.service.privateservice;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;

public class PrivateUserActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.privateservice_activity);
    }

    // --- StartService control ---

    public void onStartServiceClick(View v) {
        // *** POINT 4 *** Use the explicit intent with class specified to call
        // a service in the same application.
        Intent intent = new Intent(this, PrivateStartService.class);

        // *** POINT 5 *** Sensitive information can be sent since the destination
        // service is in the same application.
        intent.putExtra("PARAM", "Sensitive information");

        startService(intent);
    }

    // -- StopService control --

    public void onStopServiceClick(View v) {
        doStopService();
    }

    @Override
    public void onStop() {
        super.onStop();
        // Stop service if the service is running.
        doStopService();
    }

    private void doStopService() {
        // *** POINT 4 *** Use the explicit intent with class specified to call
        // a service in the same application.
        Intent intent = new Intent(this, PrivateStartService.class);
        stopService(intent);
    }

    // --- IntentService control ---

    public void onIntentServiceClick(View v) {
        // *** POINT 4 *** Use the explicit intent with class specified to call
        // a service in the same application.
        Intent intent = new Intent(this, PrivateIntentService.class);

        // *** POINT 5 *** Sensitive information can be sent since the destination
        // service is in the same application.
        intent.putExtra("PARAM", "Sensitive information");

        startService(intent);
    }
}

4.4.1.2. Creating/Using Public Services

Public Service is the Service which is supposed to be used by the unspecified large number of applications. It’s necessary to pay attention that it may receive the information (Intent etc.) which was sent by Malware. In addition, since an Intent to start Service may be received by Malware, explicit Intent should be used for launching Public Service, and <intent-filter> should not be declared in Service.

Sample code of how to use the startService type Service is shown below.

Points (Creating a Service):

  1. Explicitly set exported = “true” without defining the intent filter.
  2. Handle the received intent carefully and securely.
  3. When returning a result, do not include sensitive information.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.service.publicservice" >

  <!-- API 28 -->
  <uses-permission android:name="android.permission.FOREGROUND_SERVICE" />

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >

    <!-- Most standard Service -->
    <!-- *** POINT 1 *** Explicitly set exported = "true" without defining the intent filter. -->
    <service android:name=".PublicStartService" android:exported="true" />

    <!-- Public Service derived from IntentService class -->
    <!-- *** POINT 1 *** Explicitly set exported = "true" without defining the intent filter. -->
    <service android:name=".PublicIntentService" android:exported="true" />

  </application>

</manifest>
PublicIntentService.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.service.publicservice;

import android.app.IntentService;
import android.app.Notification;
import android.app.NotificationChannel;
import android.app.NotificationManager;
import android.content.Context;
import android.content.Intent;
import android.os.Build;
import android.widget.Toast;

public class PublicIntentService extends IntentService{

    public static final String INTENT_CHANNEL = "intent_channel";

    /**
     * Default constructor must be provided when a service extends
     * IntentService class.
     * If it does not exist, an error occurs.
     */
    public PublicIntentService() {
        super("CreatingTypeBService");
    }

    // The onCreate gets called only one time when the Service starts.
    @Override
    public void onCreate() {
        super.onCreate();

        Toast.makeText(this,
                       this.getClass().getSimpleName() + " - onCreate()",
                       Toast.LENGTH_SHORT).show();
    }

    // The onHandleIntent gets called each time after the startService gets called.
    @Override
    protected void onHandleIntent(Intent intent) {
        if (Build.VERSION.SDK_INT >= 26) {
            Context context = getApplicationContext();
            String title = context.getString(R.string.app_name);
            NotificationChannel default_channel =
                new NotificationChannel(INTENT_CHANNEL, "Intent Channel",
                                        NotificationManager.IMPORTANCE_DEFAULT);
            NotificationManager notificationManager =
                (NotificationManager) this.getSystemService(Context.NOTIFICATION_SERVICE);
            notificationManager.createNotificationChannel(default_channel);
            Notification notification =
                new Notification.Builder(context, INTENT_CHANNEL)
                    .setContentTitle(title)
                    .setSmallIcon(android.R.drawable.btn_default)
                    .setContentText("Intent Channel")
                    .setAutoCancel(true)
                    .setWhen(System.currentTimeMillis())
                    .build();
            startForeground(1, notification);
        }
        // *** POINT 2 *** Handle intent carefully and securely.
        // Since it's public service, the intent may come from malicious
        // application.
        // Omitted, since this is a sample. Please refer to
        // "3.2 Handling Input Data Carefully and Securely."
        String param = intent.getStringExtra("PARAM");
        Toast.makeText(this,
                       String.format("Recieved parameter \"%s\"", param),
                       Toast.LENGTH_LONG).show();
    }


    // The onDestroy gets called only one time when the service stops.
    @Override
    public void onDestroy() {
        Toast.makeText(this,
                       this.getClass().getSimpleName() + " - onDestroy()",
                       Toast.LENGTH_SHORT).show();
    }

}

Next is sample code for Activity which uses Public Service.

Points (Using a Service):

  1. Call service by Explicit Intent
  2. Do not send sensitive information.
  3. When receiving a result, handle the result data carefully and securely.
AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.service.publicserviceuser" >

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >
    <activity
        android:name=".PublicUserActivity"
        android:label="@string/app_name"
        android:exported="true">
      <intent-filter>
        <action android:name="android.intent.action.MAIN" />
        <category android:name="android.intent.category.LAUNCHER" />
      </intent-filter>
    </activity>

  </application>

</manifest>
PublicUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.service.publicserviceuser;

import android.app.Activity;
import android.content.Intent;
import android.os.Build;
import android.os.Bundle;
import android.view.View;

public class PublicUserActivity extends Activity {

    // Using Service Info
    private static final String TARGET_PACKAGE =
            "org.jssec.android.service.publicservice";
    private static final String TARGET_START_CLASS =
            "org.jssec.android.service.publicservice.PublicStartService";
    private static final String TARGET_INTENT_CLASS =
            "org.jssec.android.service.publicservice.PublicIntentService";

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        setContentView(R.layout.publicservice_activity);
    }

    // --- StartService control ---

    public void onStartServiceClick(View v) {
        Intent intent = new Intent("org.jssec.android.service.publicservice.action.startservice");

        // *** POINT 4 *** Call service by Explicit Intent
        intent.setClassName(TARGET_PACKAGE, TARGET_START_CLASS);

        // *** POINT 5 *** Do not send sensitive information.
        intent.putExtra("PARAM", "Not sensitive information");

        if (Build.VERSION.SDK_INT >= 26) {
            startForegroundService(intent);
        } else {
            startService(intent);
        }

        startService(intent);
        // *** POINT 6 *** When receiving a result, handle the result data
        // carefully and securely.
        // This sample code uses startService(), so receiving no result.
    }

    // --- StopService control ---

    public void onStopServiceClick(View v) {
        doStopService();
    }

    // --- IntentService control ---

    public void onIntentServiceClick(View v) {
        Intent intent = new Intent("org.jssec.android.service.publicservice.action.intentservice");

        // *** POINT 4 *** Call service by Explicit Intent
        intent.setClassName(TARGET_PACKAGE, TARGET_INTENT_CLASS);

        // *** POINT 5 *** Do not send sensitive information.
        intent.putExtra("PARAM", "Not sensitive information");

        if (Build.VERSION.SDK_INT >= 26) {
            startForegroundService(intent);
        } else {
            startService(intent);
        }
    }

    @Override
    public void onStop(){
        super.onStop();
        // Stop service if the service is running.
        doStopService();
    }

    // Stop service
    private void doStopService() {
        Intent intent = new Intent("org.jssec.android.service.publicservice.action.startservice");

        // *** POINT 4 *** Call service by Explicit Intent
        intent.setClassName(TARGET_PACKAGE, TARGET_START_CLASS);

        stopService(intent);
    }
}

4.4.1.3. Creating/Using Partner Services

Partner Service is Service which can be used only by the particular applications. System consists of partner company’s application and In house application, this is used to protect the information and features which are handled between a partner application and In house application.

Following is an example of AIDL bind type Service.

Points (Creating a Service):

  1. Explicitly set exported = “true” without defining the intent filter.
  2. Verify that the certificate of the requesting application has been registered in the own white list.
  3. Do not (Cannot) recognize whether the requesting application is partner or not by onBind (onStartCommand, onHandleIntent).
  4. Handle the received intent carefully and securely, even though the intent was sent from a partner application.
  5. Return only information that is granted to be disclosed to a partner application.

In addition, refer to “5.2.1.3. How to Verify the Hash Value of an Application’s Certificate” for how to verify the certification hash value of destination application which is specified to white list.

AndroidManifest.xml
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
          package="org.jssec.android.service.partnerservice.aidl" >

  <application
      android:icon="@drawable/ic_launcher"
      android:label="@string/app_name"
      android:allowBackup="false" >

    <!-- Service using AIDL -->
    <!-- *** POINT 1 *** Explicitly set exported = "true" without defining the intent filter. -->
    <service
        android:name="org.jssec.android.service.partnerservice.aidl.PartnerAIDLService"
        android:exported="true" />
  </application>

</manifest>

In this example, 2 AIDL files are to be created. One is for callback interface to give data from Service to Activity. The other one is Interface to give data from Activity to Service and to get information. In addition, package name that is described in AIDL file should be consistent with directory hierarchy in which AIDL file is created, same like package name described in java file.

IPartnerAIDLServiceCallback.aidl
package org.jssec.android.service.partnerservice.aidl;

interface IPartnerAIDLServiceCallback {
    /**
     * It's called when the value is changed.
     */
    void valueChanged(String info);
}
IPartnerAIDLService.aidl
package org.jssec.android.service.partnerservice.aidl;

import org.jssec.android.service.partnerservice.aidl.IExclusiveAIDLServiceCallback;

interface IPartnerAIDLService {

    /**
     * Register Callback
     */
    void registerCallback(IPartnerAIDLServiceCallback cb);

    /**
     * Get Information
     */
    String getInfo(String param);

    /**
     * Unregister Callback
     */
    void unregisterCallback(IPartnerAIDLServiceCallback cb);
}
PartnerAIDLService.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.service.partnerservice.aidl;

import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.Service;
import android.content.Context;
import android.content.Intent;
import android.os.Handler;
import android.os.IBinder;
import android.os.Message;
import android.os.RemoteCallbackList;
import android.os.RemoteException;
import android.widget.Toast;

public class PartnerAIDLService extends Service {
    private static final int REPORT_MSG = 1;
    private static final int GETINFO_MSG = 2;

    // The value which this service informs to client
    private int mValue = 0;

    // *** POINT 2 *** Verify that the certificate of the requesting application
    // has been registered in the own white list.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register certificate hash value of partner application
        // "org.jssec.android.service.partnerservice.aidluser"
        sWhitelists.add("org.jssec.android.service.partnerservice.aidluser", isdebug ?
            // Certificate hash value of  debug.keystore "androiddebugkey"
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of keystore "partner key"
            "1F039BB5 7861C27A 3916C778 8E78CE00 690B3974 3EB8259F E2627B8D 4C0EC35A");

        // Register other partner applications in the same way
    }

    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    // Object to register callback
    // Methods which RemoteCallbackList provides are thread-safe.
    private final RemoteCallbackList<IPartnerAIDLServiceCallback> mCallbacks =
        new RemoteCallbackList<IPartnerAIDLServiceCallback>();

    // Handler to send data when callback is called.
    private static class ServiceHandler extends Handler{

        private Context mContext;
        private RemoteCallbackList<IPartnerAIDLServiceCallback> mCallbacks;
        private int mValue = 0;

        public ServiceHandler(Context context,
            RemoteCallbackList<IPartnerAIDLServiceCallback> callback, int value){
            this.mContext = context;
            this.mCallbacks = callback;
            this.mValue = value;
        }

        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
            case REPORT_MSG: {
                if(mCallbacks == null){
                    return;
                }
                // Start broadcast
                // To call back on to the registered clients, use beginBroadcast().
                // beginBroadcast() makes a copy of the currently registered
                // callback list.
                final int N = mCallbacks.beginBroadcast();
                for (int i = 0; i < N; i++) {
                    IPartnerAIDLServiceCallback target =
                            mCallbacks.getBroadcastItem(i);
                    try {
                        // *** POINT 5 *** Information that is granted to disclose
                        // to partner applications can be returned.
                        target.valueChanged("Information disclosed to partner application (callback from Service) No." + (++mValue));

                    } catch (RemoteException e) {
                        // Callbacks are managed by RemoteCallbackList, do not
                        // unregister callbacks here.
                        // RemoteCallbackList.kill() unregister all callbacks
                    }
                }
                // finishBroadcast() cleans up the state of a broadcast previously
                // initiated by calling beginBroadcast().
                mCallbacks.finishBroadcast();

                // Repeat after 10 seconds
                sendEmptyMessageDelayed(REPORT_MSG, 10000);
                break;
            }
            case GETINFO_MSG: {
                if(mContext != null) {
                    Toast.makeText(mContext,
                                   (String) msg.obj, Toast.LENGTH_LONG).show();
                }
                break;
            }
            default:
                super.handleMessage(msg);
                break;
            } // switch
        }
    }

    protected final ServiceHandler mHandler =
            new ServiceHandler(this, mCallbacks, mValue);

    // Interfaces defined in AIDL
    private final IPartnerAIDLService.Stub mBinder =
        new IPartnerAIDLService.Stub() {
            private boolean checkPartner() {
                Context ctx = PartnerAIDLService.this;
                if (!PartnerAIDLService.checkPartner(ctx,
                        Utils.getPackageNameFromUid(ctx, getCallingUid()))) {
                    mHandler.post(new Runnable(){
                        @Override
                        public void run(){
                            Toast.makeText(PartnerAIDLService.this,
                                "Requesting application is not partner application.",
                                Toast.LENGTH_LONG).show();
                        }
                    });
                    return false;
                }
                return true;
            }
            public void registerCallback(IPartnerAIDLServiceCallback cb) {
                // *** POINT 2 *** Verify that the certificate of the requesting
                // application has been registered in the own white list.
                if (!checkPartner()) {
                    return;
                }
                if (cb != null) mCallbacks.register(cb);
            }
            public String getInfo(String param) {
                // *** POINT 2 *** Verify that the certificate of the requesting
                // application has been registered in the own white list.
                if (!checkPartner()) {
                    return null;
                }
                // *** POINT 4 *** Handle the received intent carefully and
                // securely, even though the intent was sent from a partner
                // application
                // Omitted, since this is a sample. Please refer to
                // "3.2 Handling Input Data Carefully and Securely."
                Message msg = new Message();
                msg.what = GETINFO_MSG;
                msg.obj = String.format("Method calling from partner application. Recieved \"%s\"", param);
                PartnerAIDLService.this.mHandler.sendMessage(msg);

                // *** POINT 5 *** Return only information that is granted to be
                // disclosed to a partner application.
                return "Information disclosed to partner application (method from Service)";
            }

            public void unregisterCallback(IPartnerAIDLServiceCallback cb) {
                // *** POINT 2 *** Verify that the certificate of the requesting
                // application has been registered in the own white list.
                if (!checkPartner()) {
                    return;
                }

                if (cb != null) mCallbacks.unregister(cb);
            }
        };

    @Override
    public IBinder onBind(Intent intent) {
        // *** POINT 3 *** Verify that the certificate of the requesting
        // application has been registered in the own white list.
        // So requesting application must be validated in methods defined
        // in AIDL every time.
        return mBinder;
    }

    @Override
    public void onCreate() {
        Toast.makeText(this,
                       this.getClass().getSimpleName() + " - onCreate()",
                       Toast.LENGTH_SHORT).show();

        // During service is running, inform the incremented number periodically.
        mHandler.sendEmptyMessage(REPORT_MSG);
    }

    @Override
    public void onDestroy() {
        Toast.makeText(this,
                       this.getClass().getSimpleName() + " - onDestroy()",
                       Toast.LENGTH_SHORT).show();

        // Unregister all callbacks
        mCallbacks.kill();

        mHandler.removeMessages(REPORT_MSG);
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance("SHA-256").digest(data);
        } catch (NoSuchAlgorithmException e) {
            return null;
        }
    }

    private static String byte2hex(byte[] data) {
        if (data == null) return null;
        final StringBuilder hexadecimal = new StringBuilder();
        for (final byte b : data) {
            hexadecimal.append(String.format("%02X", b));
        }
        return hexadecimal.toString();
    }
}

Next is sample code of Activity which uses partner only Service.

Points (Using a Service):

  1. Verify if the certificate of the target application has been registered in the own white list.
  2. Return only information that is granted to be disclosed to a partner application.
  3. Use the explicit intent to call a partner service.
  4. Handle the received result data carefully and securely, even though the data came from a partner application.
PartnerAIDLUserActivity.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.jssec.android.service.partnerservice.aidluser;

import org.jssec.android.service.partnerservice.aidl.IPartnerAIDLService;
import org.jssec.android.service.partnerservice.aidl.IPartnerAIDLServiceCallback;
import org.jssec.android.shared.PkgCertWhitelists;
import org.jssec.android.shared.Utils;

import android.app.Activity;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.Handler;
import android.os.IBinder;
import android.os.Message;
import android.os.RemoteException;
import android.view.View;
import android.widget.Toast;

public class PartnerAIDLUserActivity extends Activity {

    private boolean mIsBound;
    private Context mContext;

    private final static int MGS_VALUE_CHANGED = 1;

    // *** POINT 6 *** Verify if the certificate of the target application has
    // been registered in the own white list.
    private static PkgCertWhitelists sWhitelists = null;
    private static void buildWhitelists(Context context) {
        boolean isdebug = Utils.isDebuggable(context);
        sWhitelists = new PkgCertWhitelists();

        // Register certificate hash value of partner service application
        // "org.jssec.android.service.partnerservice.aidl"
        sWhitelists.add("org.jssec.android.service.partnerservice.aidl", isdebug ?
            // Certificate hash value of debug.keystore "androiddebugkey"
            "0EFB7236 328348A9 89718BAD DF57F544 D5CCB4AE B9DB34BC 1E29DD26 F77C8255" :
            // Certificate hash value of  keystore "my company key"
            "D397D343 A5CBC10F 4EDDEB7C A10062DE 5690984F 1FB9E88B D7B3A7C2 42E142CA");

        // Register other partner service applications in the same way
    }
    private static boolean checkPartner(Context context, String pkgname) {
        if (sWhitelists == null) buildWhitelists(context);
        return sWhitelists.test(context, pkgname);
    }

    // Information about destination (requested) partner activity.
    private static final String TARGET_PACKAGE =
            "org.jssec.android.service.partnerservice.aidl";
    private static final String TARGET_CLASS =
            "org.jssec.android.service.partnerservice.aidl.PartnerAIDLService";

    private static class ReceiveHandler extends Handler{

        private Context mContext;

        public ReceiveHandler(Context context){
            this.mContext = context;
        }

        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
            case MGS_VALUE_CHANGED: {
                String info = (String)msg.obj;
                Toast.makeText(mContext,
                        String.format("Received \"%s\" with callback.", info),
                        Toast.LENGTH_SHORT).show();
                break;
            }
            default:
                super.handleMessage(msg);
                break;
            } // switch
        }
    }

    private final ReceiveHandler mHandler = new ReceiveHandler(this);

    // Interfaces defined in AIDL. Receive notice from service
    private final IPartnerAIDLServiceCallback.Stub mCallback =
        new IPartnerAIDLServiceCallback.Stub() {
            @Override
            public void valueChanged(String info) throws RemoteException {
                Message msg = mHandler.obtainMessage(MGS_VALUE_CHANGED, info);
                mHandler.sendMessage(msg);
            }
        };

    // Interfaces defined in AIDL. Inform service.
    private IPartnerAIDLService mService = null;

    // Connection used to connect with service. This is necessary when service is
    // implemented with bindService().
    private ServiceConnection mConnection = new ServiceConnection() {

            // This is called when the connection with the service has been
            // established.
            @Override
            public void onServiceConnected(ComponentName className,
                                           IBinder service) {
                mService = IPartnerAIDLService.Stub.asInterface(service);

                try{
                    // connect to service
                    mService.registerCallback(mCallback);

                }catch(RemoteException e){
                    // service stopped abnormally
                }

                Toast.makeText(mContext,
                               "Connected to service",
                               Toast.LENGTH_SHORT).show();
            }

            // This is called when the service stopped abnormally and connection
            // is disconnected.
            @Override
            public void onServiceDisconnected(ComponentName className) {
                Toast.makeText(mContext,
                               "Disconnected from service",
                               Toast.LENGTH_SHORT).show();
            }
        };

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        setContentView(R.layout.partnerservice_activity);

        mContext = this;
    }

    // -- StartService control --
    public void onStartServiceClick(View v) {
        // Start bindService
        doBindService();
    }

    // -- GetInfo control --
    public void onGetInfoClick(View v) {
        getServiceinfo();
    }

    // -- StopService control --
    public void onStopServiceClick(View v) {
        doUnbindService();
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        doUnbindService();
    }

    /**
     * Connect to service
     */
    private void doBindService() {
        if (!mIsBound){
            // *** POINT 6 *** Verify if the certificate of the target application
            // has been registered in the own white list.
            if (!checkPartner(this, TARGET_PACKAGE)) {
                Toast.makeText(this,
                    "Destination(Requested) sevice application is not registered in white list.", Toast.LENGTH_LONG).show();
                return;
            }

            Intent intent = new Intent();

            // *** POINT 7 *** Return only information that is granted to be
            // disclosed to a partner application.
            intent.putExtra("PARAM",
                            "Information disclosed to partner application");

            // *** POINT 8 *** Use the explicit intent to call a partner service.
            intent.setClassName(TARGET_PACKAGE, TARGET_CLASS);

            bindService(intent, mConnection, Context.BIND_AUTO_CREATE);
            mIsBound = true;
        }
    }

    /**
     * Disconnect service
     */
    private void doUnbindService() {
        if (mIsBound) {
            // Unregister callbacks which have been registered.
            if(mService != null){
                try{
                    mService.unregisterCallback(mCallback);
                }catch(RemoteException e){
                    // Service stopped abnormally
                    // Omitted, since it' s sample.
                }
            }

            unbindService(mConnection);

            Intent intent = new Intent();

            // *** POINT 8 *** Use the explicit intent to call a partner service.
            intent.setClassName(TARGET_PACKAGE, TARGET_CLASS);

            stopService(intent);

            mIsBound = false;
        }
    }

    /**
     * Get information from service
     */
    void getServiceinfo() {
        if (mIsBound && mService != null) {
            String info = null;

            try {
                // *** POINT 7 *** Return only information that is granted to be
                // disclosed to a partner application.
                info = mService.getInfo("Information disclosed to partner application (method from activity)");
            } catch (RemoteException e) {
                e.printStackTrace();
            }
            // *** POINT 9 *** Handle the received result data carefully and
            // securely, even though the data came from a partner application.
            // Omitted, since this is a sample. Please refer to
            // "3.2 Handling Input Data Carefully and Securely."
            Toast.makeText(mContext,
                           String.format("Received \"%s\" from service.", info),
                           Toast.LENGTH_SHORT).show();
        }
    }
}
PkgCertWhitelists.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import android.content.pm.PackageManager;
import java.util.HashMap;
import java.util.Map;
import android.content.Context;
import android.os.Build;

import static android.content.pm.PackageManager.CERT_INPUT_SHA256;

public class PkgCertWhitelists {
    private Map<String, String> mWhitelists = new HashMap<String, String>();

    public boolean add(String pkgname, String sha256) {
        if (pkgname == null) return false;
        if (sha256 == null) return false;

        sha256 = sha256.replaceAll(" ", "");
        if (sha256.length() != 64)
            return false;  // SHA-256 -> 32 bytes -> 64 chars
        sha256 = sha256.toUpperCase();
        if (sha256.replaceAll("[0-9A-F]+", "").length() != 0)
            return false;  // found non hex char

        mWhitelists.put(pkgname, sha256);
        return true;
    }

    public boolean test(Context ctx, String pkgname) {
        // Get the correct hash value which corresponds to pkgname.
        String correctHash = mWhitelists.get(pkgname);

        // Compare the actual hash value of pkgname with the correct hash value.
        if (Build.VERSION.SDK_INT >= 28) {
            // ** if API Level >= 28, direct checking is possible
            PackageManager pm = ctx.getPackageManager();
            return pm.hasSigningCertificate(pkgname,
                                            Utils.hex2Bytes(correctHash),
                                            CERT_INPUT_SHA256);
        } else {
            // else use the facility of PkgCert
            return PkgCert.test(ctx, pkgname, correctHash);
        }
    }
}
PkgCert.java
/*
 * Copyright (C) 2012-2019 Japan Smartphone Security Association
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.jssec.android.shared;

import java.security.MessageDigest;
import java.security.NoSuchAlgorithmException;

import android.content.Context;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.content.pm.PackageManager.NameNotFoundException;
import android.content.pm.Signature;

public class PkgCert {

    public static boolean test(Context ctx, String pkgname, String correctHash) {
        if (correctHash == null) return false;
        correctHash = correctHash.replaceAll(" ", "");
        return correctHash.equals(hash(ctx, pkgname));
    }

    public static String hash(Context ctx, String pkgname) {
        if (pkgname == null) return null;
        try {
            PackageManager pm = ctx.getPackageManager();
            PackageInfo pkginfo =
                pm.getPackageInfo(pkgname, PackageManager.GET_SIGNATURES);
            // Will not handle multiple signatures.
            if (pkginfo.signatures.length != 1) return null;
            Signature sig = pkginfo.signatures[0];
            byte[] cert = sig.toByteArray();
            byte[] sha256 = computeSha256(cert);
            return byte2hex(sha256);
        } catch (NameNotFoundException e) {
            return null;
        }
    }

    private static byte[] computeSha256(byte[] data) {
        try {
            return MessageDigest.getInstance(
